AC Horsepower Ratings

Amperage : 15 A

At Rated Voltage : 1/2 HP

Dielectric Voltage : Withstands 3000V min

Grounding : Self-Grounding

Pole : 2

Temperature Rise : Max 30C temperature rise at full rated current

Voltage : 125 VAC

Wire : 3

Standards and Certifications

ANSI : C-73

Applicable Standards : UL 498, Fed Spec W-C-569, CSA 22.2 No. 42

Certification/Listing : cULus, NOM-ANCE

NOM : 057

RoHS : RoHS Compliant

Warranty : 10-Year Limited

Environmental Specifications

Body Material : PBT Polyester Blend

Clamp Nuts : 0.030" Brass

Face Material : PBT Polyester Blend

Flammability : Rated V-2 per UL 94

Ground Clips : Brass

Ground Contacts : 0030" Brass

Grounding Screw : #8 Hex Head, Triple-Drive Bass

Line Contacts : 0.030" Phosopher Bronze

Mounting Screws : Triple-Drive Plated Steel

Operating Temperature : -40°C to 60°C

Shutter Mechanism : Acetal

Strap Material : Steel (Galvanized G60)

Terminal Screws : #8 Triple-Drive Brass

Material Specifications

At Rated Voltage : 1/2 HP

Body Material : PBT Polyester Blend

Clamp Nuts : 0.030" Brass

Face Material : PBT Polyester Blend

Ground Clips : Brass

Ground Contacts : 0030" Brass

Grounding Screw : #8 Hex Head, Triple-Drive Bass

Line Contacts : 0.030" Phosopher Bronze

Mounting Screws : Triple-Drive Plated Steel

Shutter Mechanism : Acetal

Strap Material : Steel (Galvanized G60)

Terminal Clamp : Brass

Terminal Screws : #8 Triple-Drive Brass

Product Features

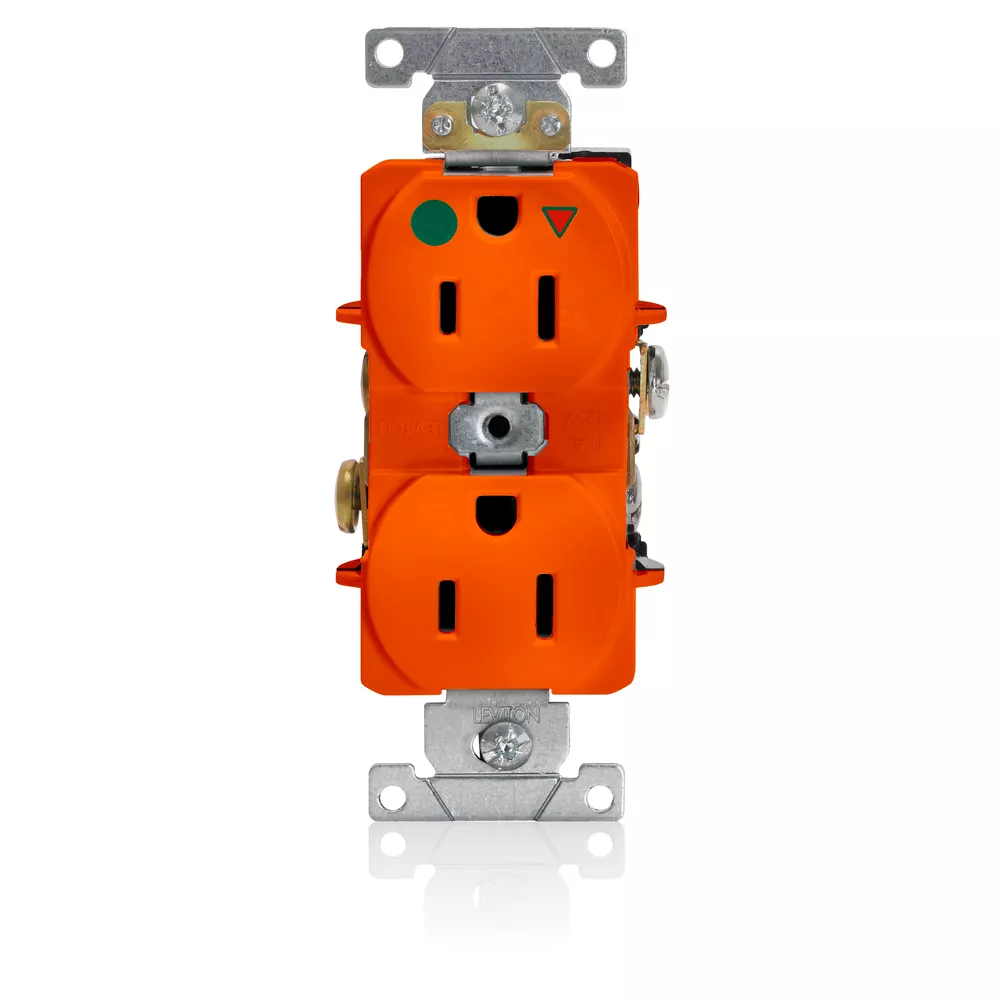

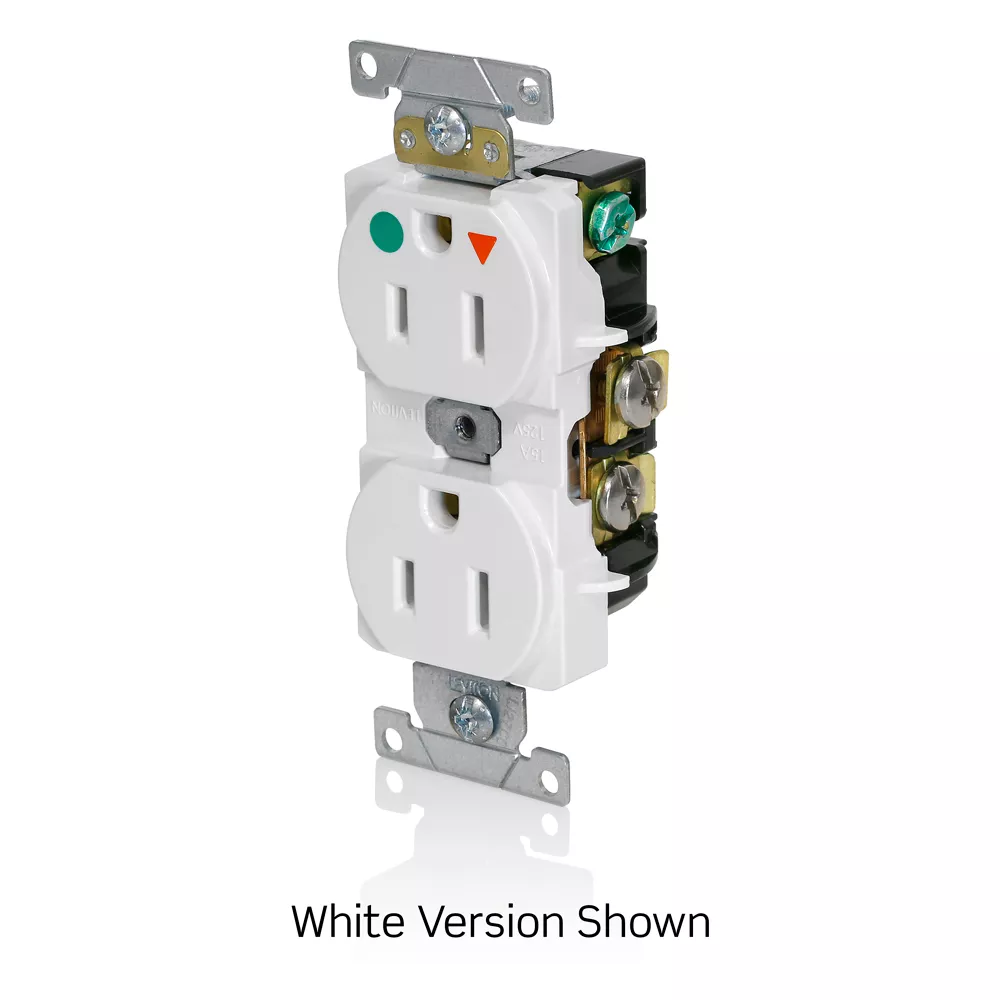

Device Type : Duplex Receptacle Outlet

Feature 4 : Smooth Face

Function : Isolated Ground

Grade : Heavy-Duty Hospital Grade

Electrical Specifications

Amperage : 15 A

Dielectric Voltage : Withstands 3000V min

Flammability : Rated V-2 per UL 94

Grounding : Self-Grounding

Operating Temperature : -40°C to 60°C

Pole : 2

Temperature Rise : Max 30C temperature rise at full rated current

Voltage : 125 VAC

Wire : 3

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Back or Side Wire

Wire Type : Stranded or Solid
