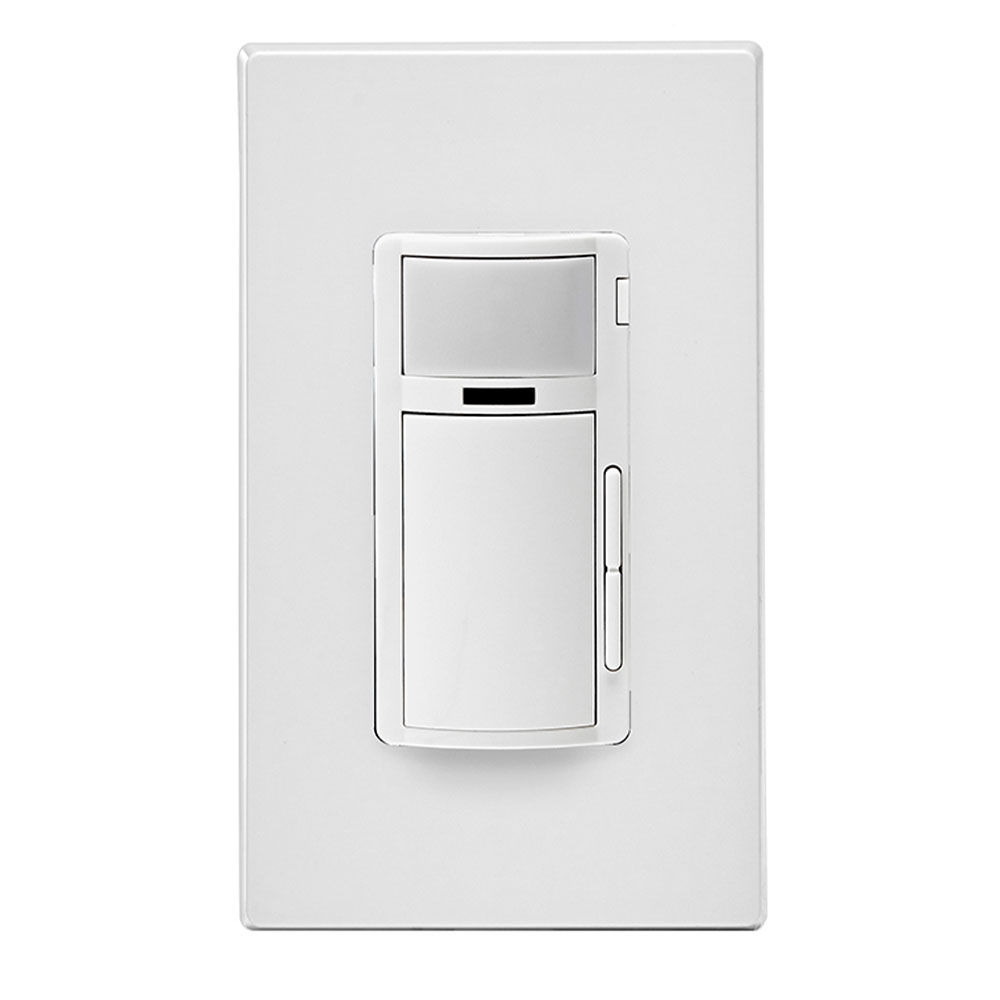

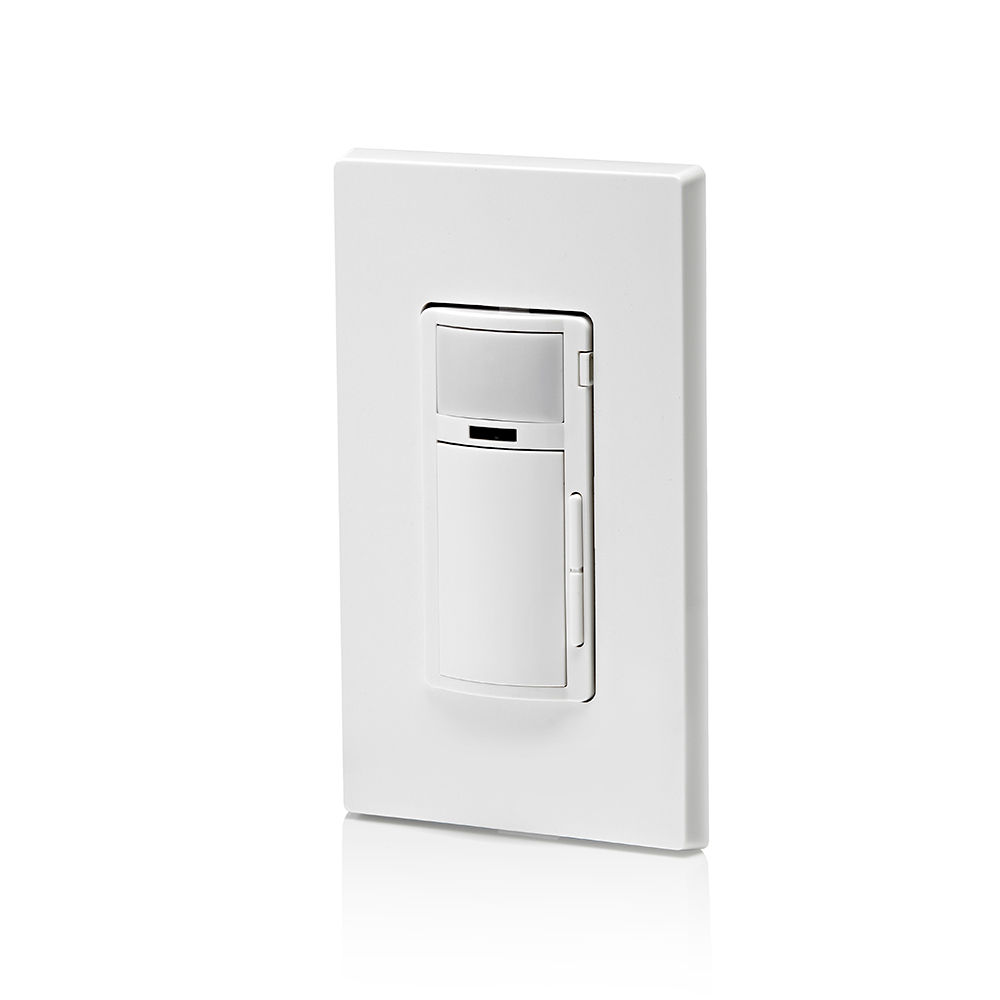

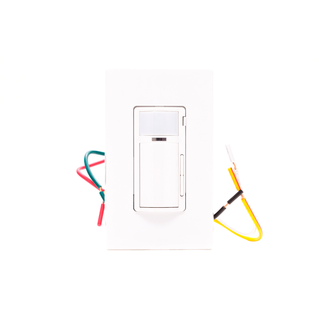

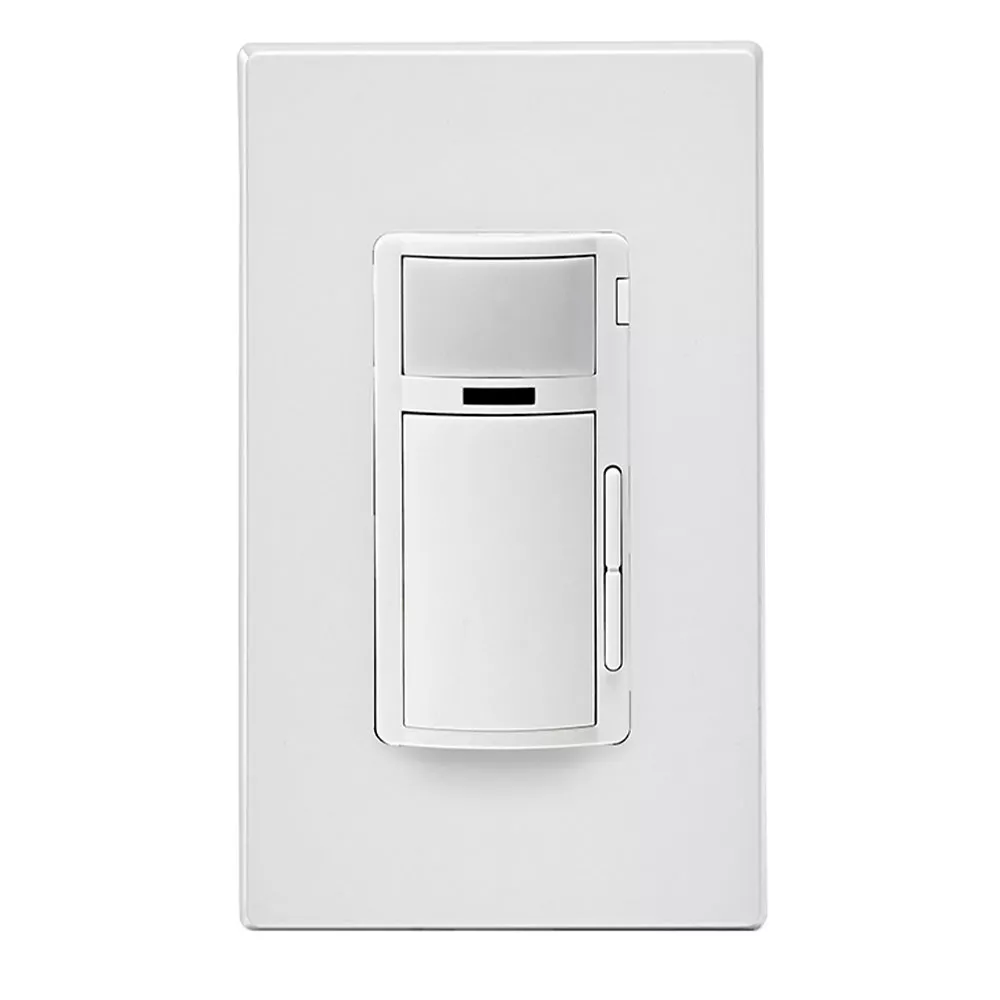

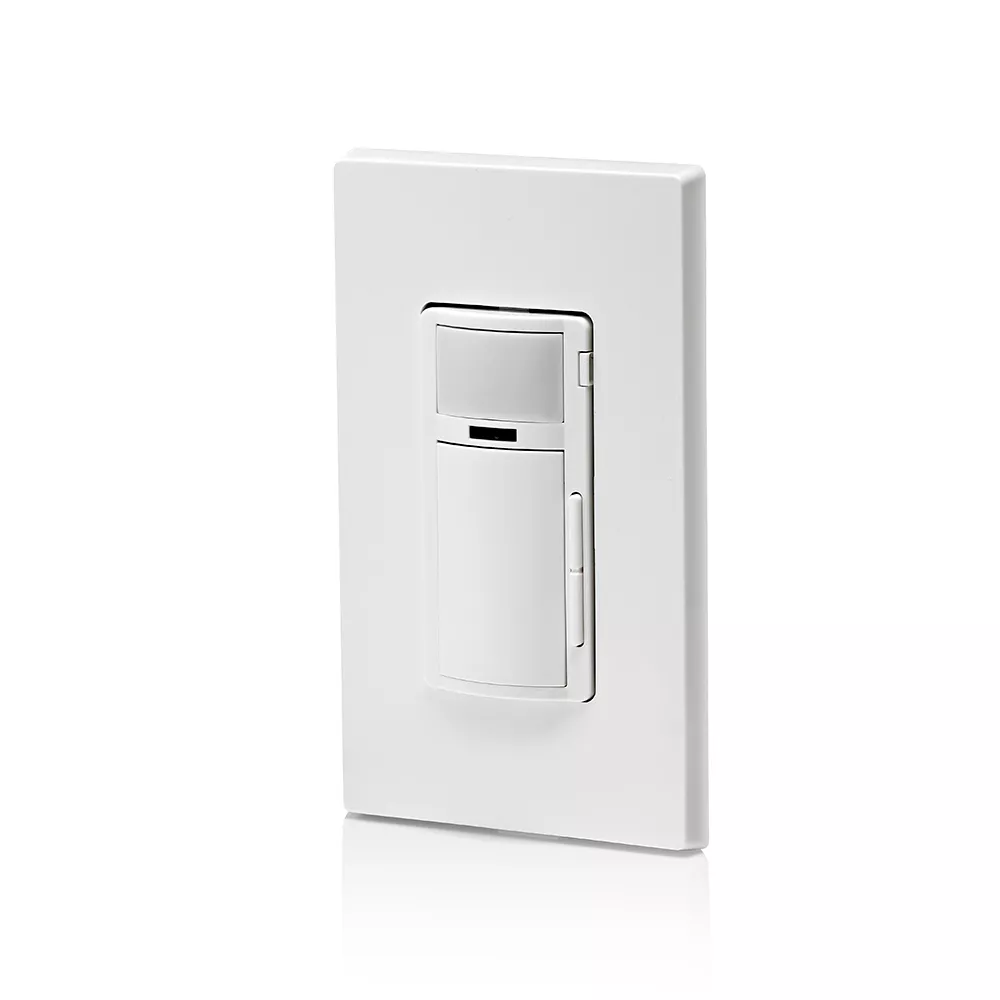

Decora Smart Motion Sensing Dimmer Switch, Wi-Fi 2nd Gen, Neutral Wire Required

D2MSD-1BW

Decora Smart Motion Sensing Dimmer Switch, Wi-Fi 2nd Gen. 300W LED, 300W CFL, 450W Incandescent/Halogen, 450VA Magnetic Low Voltage, White

BENEFITS

  • Hands full or can't reach the light switch? Go touch-free by automatically turning lights on when you enter the room
  • Don't worry about leaving lights on - motion sensing turns lights off for you
  • Motion activated lighting - ideal in laundry rooms, closets, pantries, bathrooms, garages, offices, and more
  • Create a comfortable ambiance - full-range dimming lets you adjust lighting to the desired level for your space throughout the day
  • Use your voice for control without lifting a finger - works with Google Assistant, Amazon Alexa, and Apple HomeKit / Siri
  • Know if lights are on and adjust whether you're home, at work, or on vacation - control from anywhere

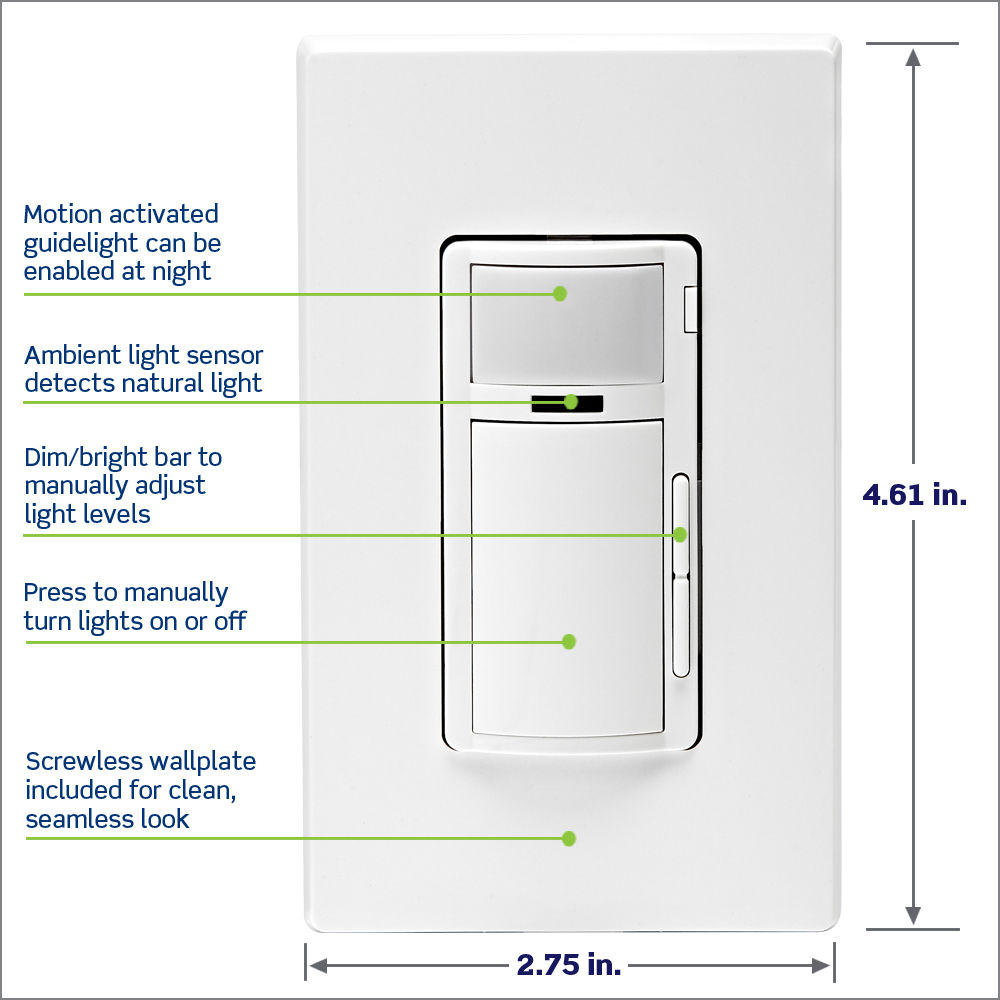

  • Automatic softer lighting at night - dims the lights low or turns on a built-in guidelight to softly illuminate your way in the dark, ideal for hallways and bathrooms
  • Saves energy - light sensor knows the amount of natural light in the space and only turns on the lights if you need them
  • Personalize your lighting - customizable fade rates that gradually turn lighting on or off, or preset light level options to make sure lights always come on at the level you want
  • Prevent flickering lights - designed for compatibility with dimmable LED bulbs and fixtures with settings to fine-tune performance such as bulb type, min dim, and max bright
  • Make it look like someone's home when you're away - turn on lights randomly for a lived-in look

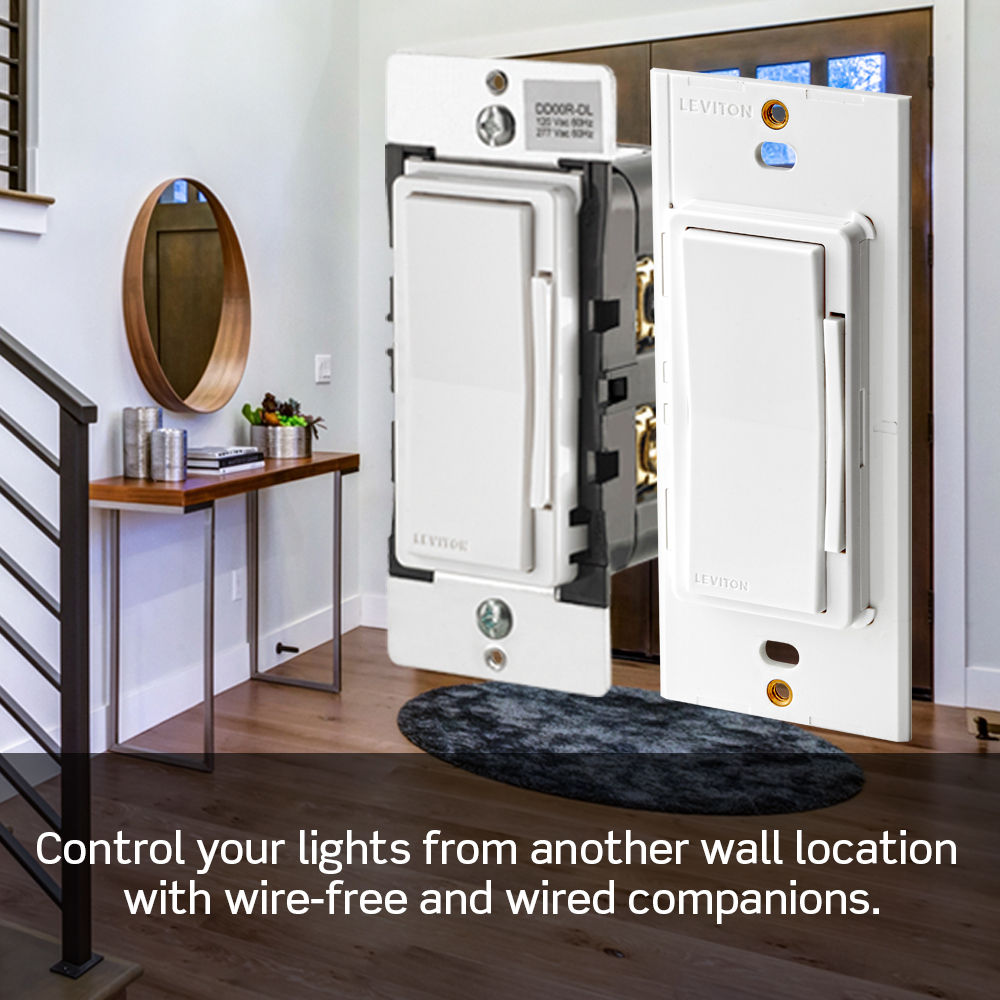

  • Control this dimmer from another wall location in your home without additional wiring - pairs with DAWDC or DAWSC Anywhere Dimmer or Switch Companions

FEATURES

  • Versatile PIR Motion Sensor - up to 900 sq. ft. of coverage; supports occupancy (automatically turn lights on when you enter and off when you leave) and vacancy modes (press the switch to turn on, automatic-off when you leave)
  • Full range dimming - on/off and dim/bright control of dimmable LED and CFL, Incandescent/Halogen, and MLV lighting
  • Control multiple devices with motion - use My Leviton Room Response to control Decora Smart devices; Use Apple Home to control HomeKit scenes and accessories
  • Motion Snooze - lets you pause motion detection when needed to keep lights on or off temporarily
  • One switch, many options - use as a dimmer switch or an on/off switch, ideal for garages, workshops, or other areas with flourescent lighting
  • Easy Install - replaces your existing switch; wire leads and slim design make install a breeze
  • Simple guided setup - works with the My Leviton app to configure motion settings without complex programming
  • Lights won't glow when you turn the dimmer off - "Off Means Off" technology ensures low-wattage LED bulbs don't glow in the off state
  • Single Pole or 3-Way - works with DD00R Wired Dimmer Companion, DD0SR Wired Switch Companion, DAWDC wire-free Anywhere Dimmer Companion, or DAWSC wire-free Anywhere Switch Companion

TECH SPECS

  • Requires 2.4 GHz Wi-Fi Network; No hub required with My Leviton app
  • Requires Neutral Wire
  • Rated for 120V, 60Hz: Dimmable LED and CFL up to 300W, Incandescent up to 450W, and Magnetic Low Voltage up to 450VA
UPC Code: 078477172582
Country of Origin : China

Product Information

  • Electrical Specifications

    Load Rating : 300W LED/CFL, 450W Incand/ Halogen, 450VA MLV

    Neutral Required : Yes

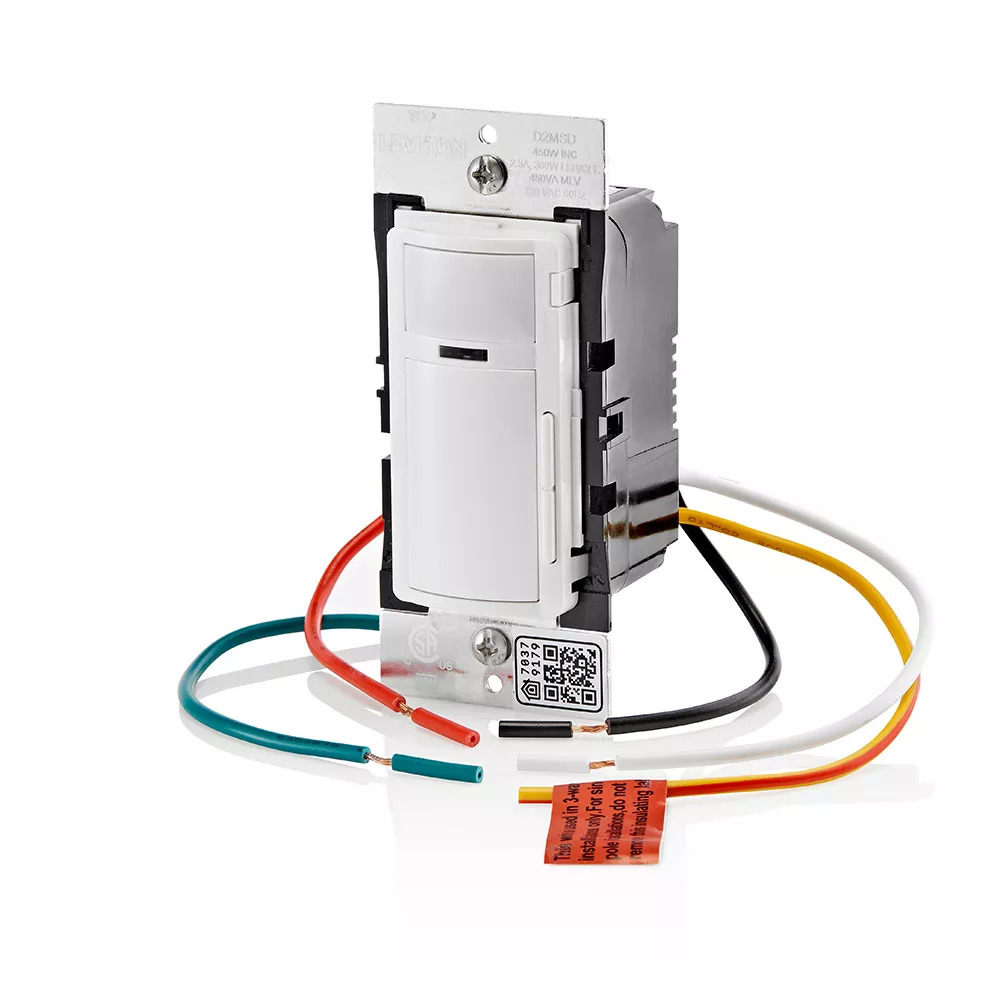

    Termination : Wire Leads

    Voltage : 120 VAC

  • Environmental Specifications

    Operating Temperature : 0°C to 40°C

  • Product Features

    Auto-ON/Auto-OFF : Yes

    Brand : Decora Smart Wi-Fi

    California Title 24 : Yes

    Coverage (Sq.Ft.) : 180°, 900 Sq. Ft

    Device Type : In-Wall Dimming Sensor

    Grade : Residential

    Hub Required : No

    Sensor Technology : Passive Infrared

    Sensor Type : Occupancy, Vacancy

  • Warranty

    Warranty : Two-Year Limited

  • Standards and Certifications

    Standards and Certification : UL, FCC, CSA, NOM, NEMA SSL 7A, Title 24

  • Material Specifications

    Color : White

    Optional Color Change Kits Available : No

    Strap Material : Metal

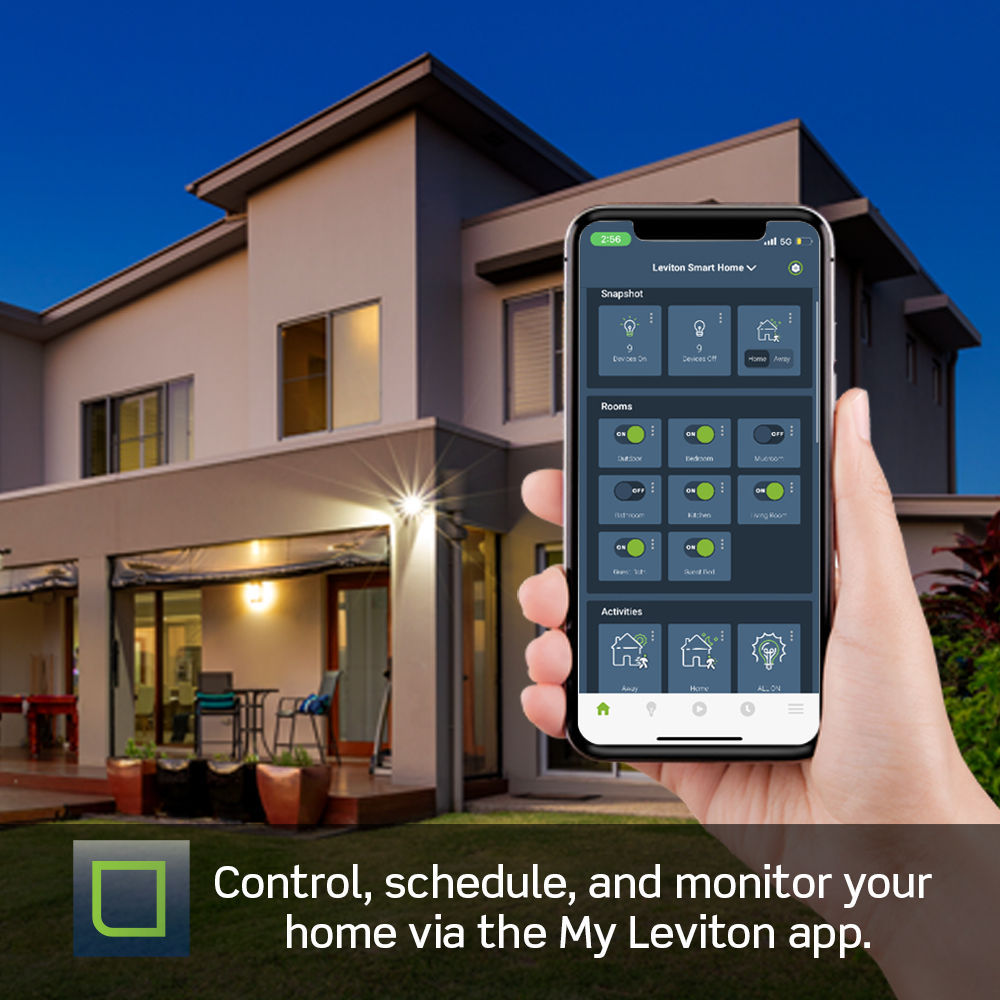

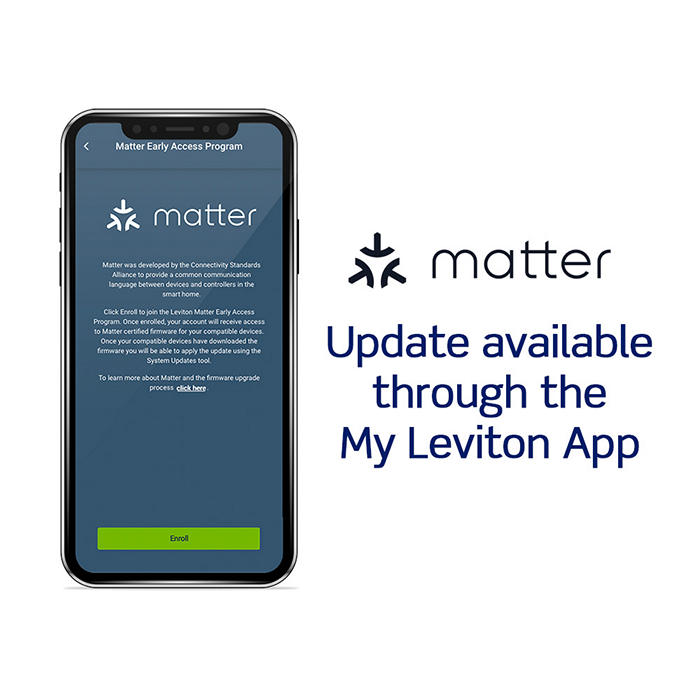

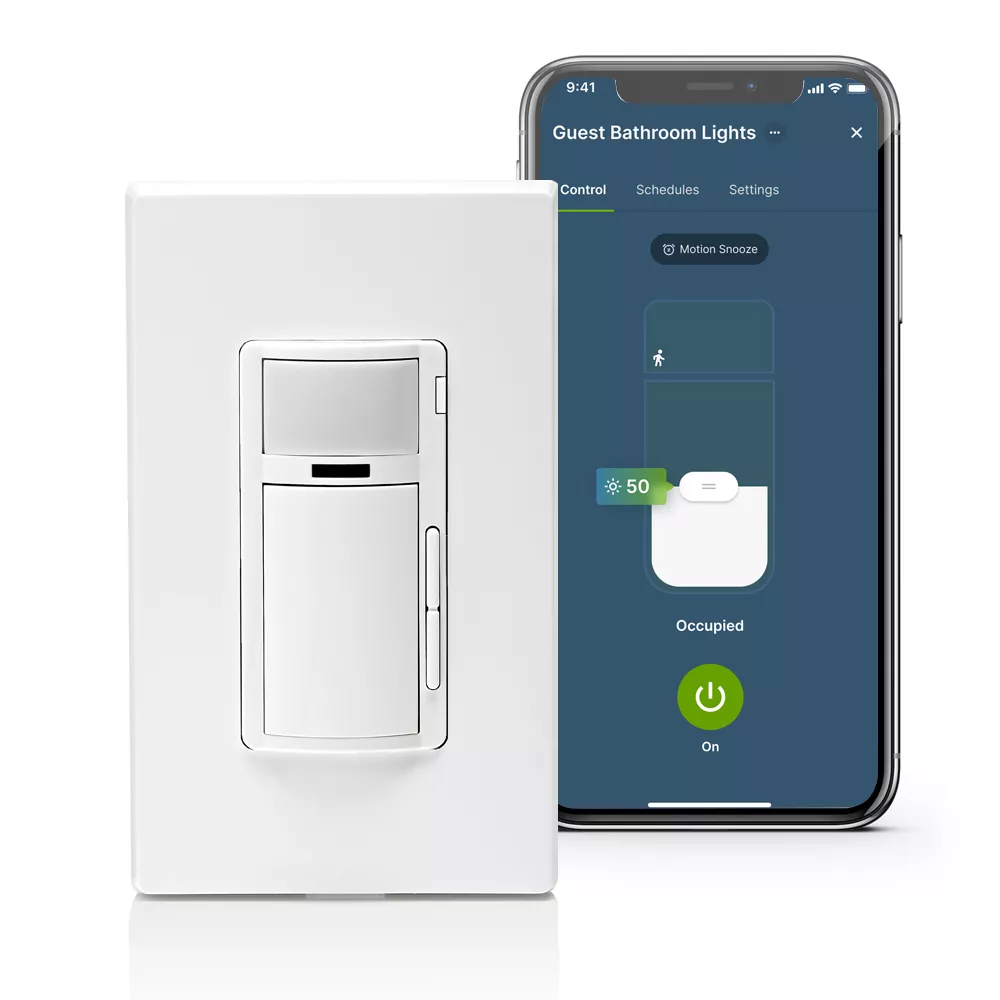

  • Control your lights from anywhere using the free My Leviton app for iOS and Android, no hub required
  • Simplify control of your home – hands-free lighting control with automatic ON/OFF, Dim/Bright control, built-in motion and ambient light detection, or schedule lights and connected loads to dim/brighten or turn ON/OFF at specific times or based on sunrise/sunset
  • Schedules are stored within the device and will run during a temporary internet outage
  • Works with My Leviton, Amazon Alexa, Hey Google, HomeKit/Siri, IFTTT, SmartThings, Schlage
  • Connects to Wi-Fi; No hub required
  • Requires a neutral wire for installation
  • Full Range dimming performance with LED, CFL, Incandescent, Halogen and Magnetic Low Voltage bulbs
  • Custom settings in the My Leviton app for preset lighting levels, fade rates, bulb types and more including ON/OFF control of non-dimmable bulbs, such as fluorescent loads in garages or basements
  • Motion Detection - 180° PIR sensor field-of-view; up to 900 sq. ft. major motion coverage
  • Support for Occupancy and Vacancy Mode with the ability to change modes at the device or by using the My Leviton app
  • Ease of installation with a product depth of 1.3” and wire leads
  • Off Means Off – Low-wattage LED bulbs always turn completely off
  • Supports 3-Way/Multi-location with Wired Companions or Wire-Free Anywhere Companions
  • Using My Leviton, control up to 99 devices, 50 rooms,
  • 50 activities, and 50 schedules per residence and  up to 20 residences per account

  • ca2572204
  • ca2708330
  • ca2798964
  • mx315382
  • mx321054
  • us10048653
  • us10062528
  • us7683755
  • us7924155
  • us8664886
  • us8981299
  • us9329607
  • us9767973

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
