Standards and Certifications

ANSI : C-73

CSA C22.2 No. 111 : File #152105

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 65°C

Warranty

Amperage : 15 A

Dielectric Voltage : Withstands 1500V for 1 minute

Endurance : 50,000 cycles minimum

Grounding : Self-Grounding

Overload UL20 Test : 100 cycles of OL at 4.8 times rated current

Temperature Rise : Maximum 30 degrees C rise

Voltage : 347 VAC

Warranty : 10-Year Limited

Electrical Specifications

Actuator Material : Thermoplastic

Amperage : 15 A

Body Material : Thermoplastic

Dielectric Voltage : Withstands 1500V for 1 minute

Endurance : 50,000 cycles minimum

Grounding : Self-Grounding

Overload UL20 Test : 100 cycles of OL at 4.8 times rated current

Strap Material : Steel

Temperature Rise : Maximum 30 degrees C rise

Voltage : 347 VAC

Product Features

Brand : Decora Plus

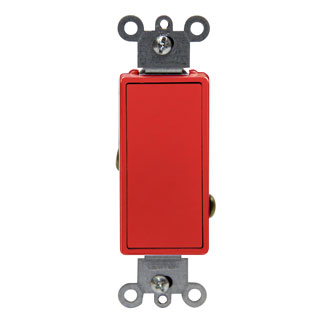

Device Type : Rocker Switch

Feature 4 : Canadian

Function : Single-Pole

Grade : Commercial Specification Grade

Material Specifications

Actuator Material : Thermoplastic

Body Material : Thermoplastic

Brand : Decora Plus

Device Type : Rocker Switch

Feature 4 : Canadian

Function : Single-Pole

Grade : Commercial Specification Grade

Strap Material : Steel

Environmental Specifications

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 65°C

Product ID : Stamped on Strap

Terminal Accom. : 14-#10 AWG back wired; #14-#12 AWG side wired

Terminal ID : Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd

Termination : Back or Side Wire

Mechanical Specifications

Product ID : Stamped on Strap

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-#10 AWG back wired; #14-#12 AWG side wired

Terminal ID : Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd

Termination : Back or Side Wire
