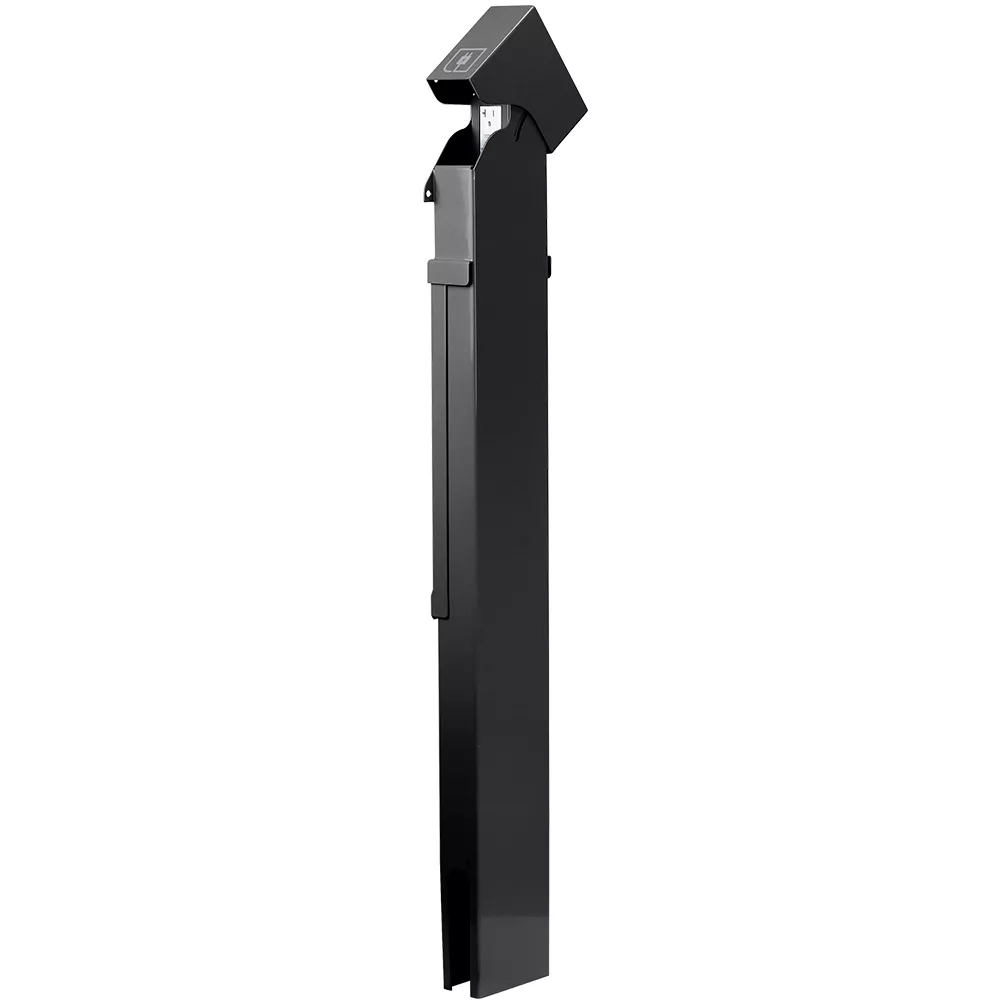

Power Pedestal Kit, Standard Hinge, Direct Bury
1BH42-1E
1-Gang 42” Stainless Steel Power Pedestal Kit, Direct Bury, NEMA 3R, Lockable Flush Hinged Top, Self-Closing Lid, Black, Kit Includes 20 Amp Weather-Resistant and Tamper-Resistant GFCI (G5362-WTW)
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Pedestals are proudly made in the USA. See individual catalog number pages for electrical wiring device country of origin.
Color: Black
Product Information
Product Features
Application : Commercial|RV/Campsites
Base : Direct Bury
Color : Black
Hinge Type : Standard
Kitted Options : Comes with Leviton Receptacles
Receptacle Compatibility : Decora Style
Top : Lockable Hinged Top
Standards & Certifications
Certification/Listing : cULus, NOM
Mechanical Specifications
Conduit Feeds : Accommodates two 1-1/2" conduit raceways
Height : 42" inch (18" above grade)
Maximum Dimensions : 42.0"H x 2.75"W x 6.0"D
Mounting Plate : 1-Gang Decora
Electrical Specifications
Max. Amperage : 20A Max
Voltage : 125 VAC
Warranty
Warranty : 1-Year Limited
Material Specifications
Construction : Welded pedestal body and cover with removable access panel and wire entry slots
Grounding : Stainless Steel (Pre-installed Lug)
Pedestal Material : 304 Stainless Steel (14 gauge body, cover and access panel)
