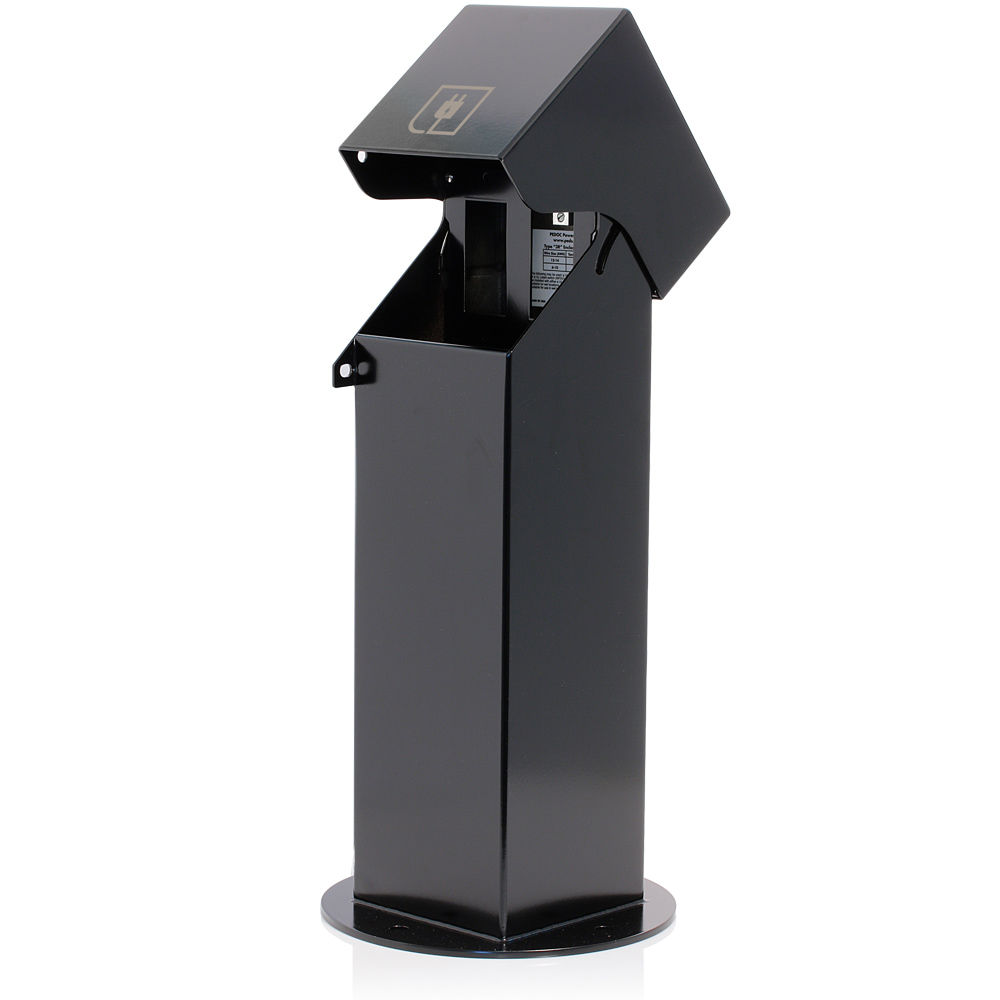

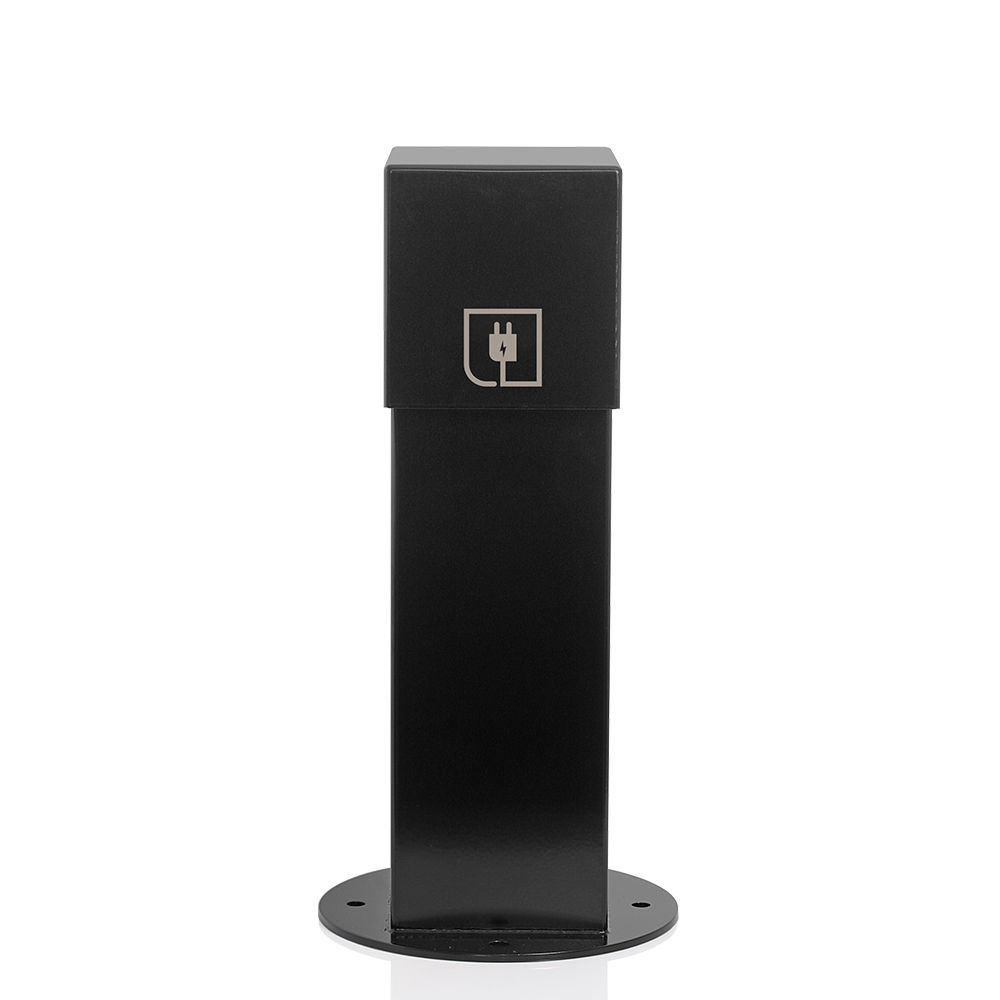

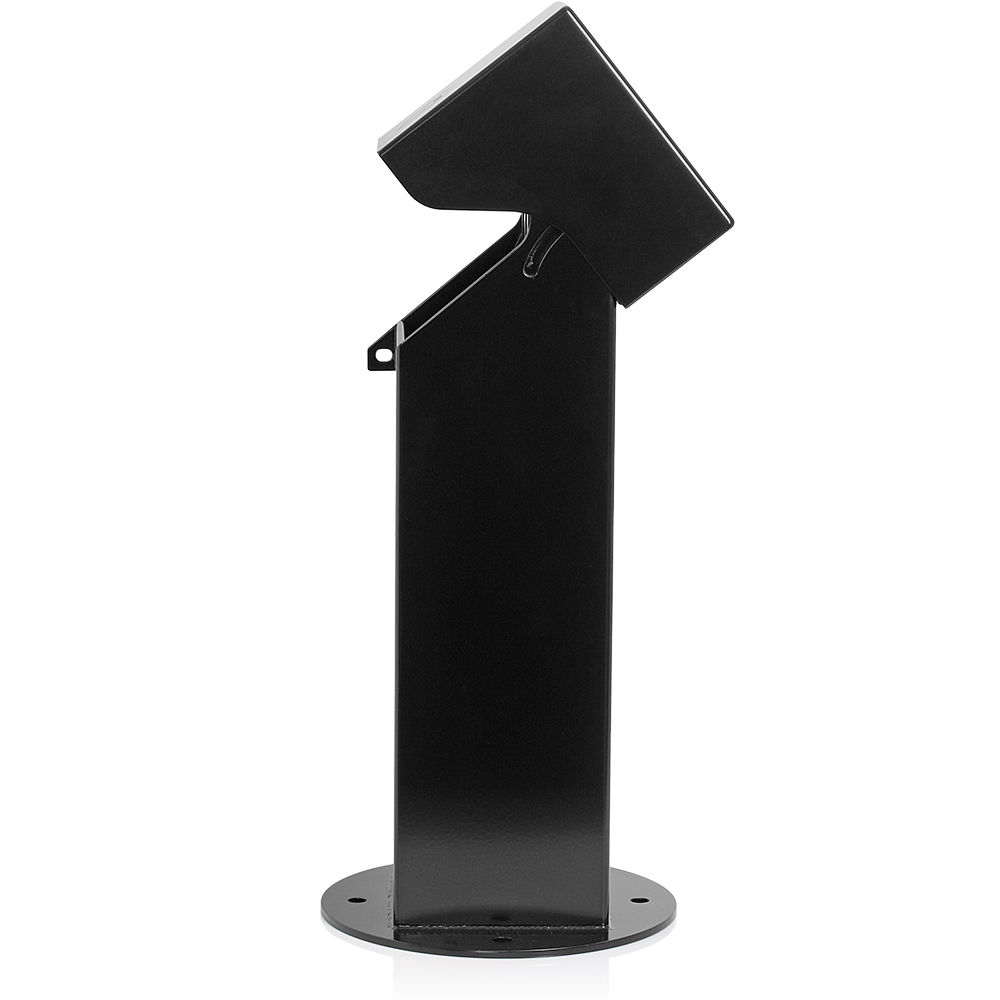

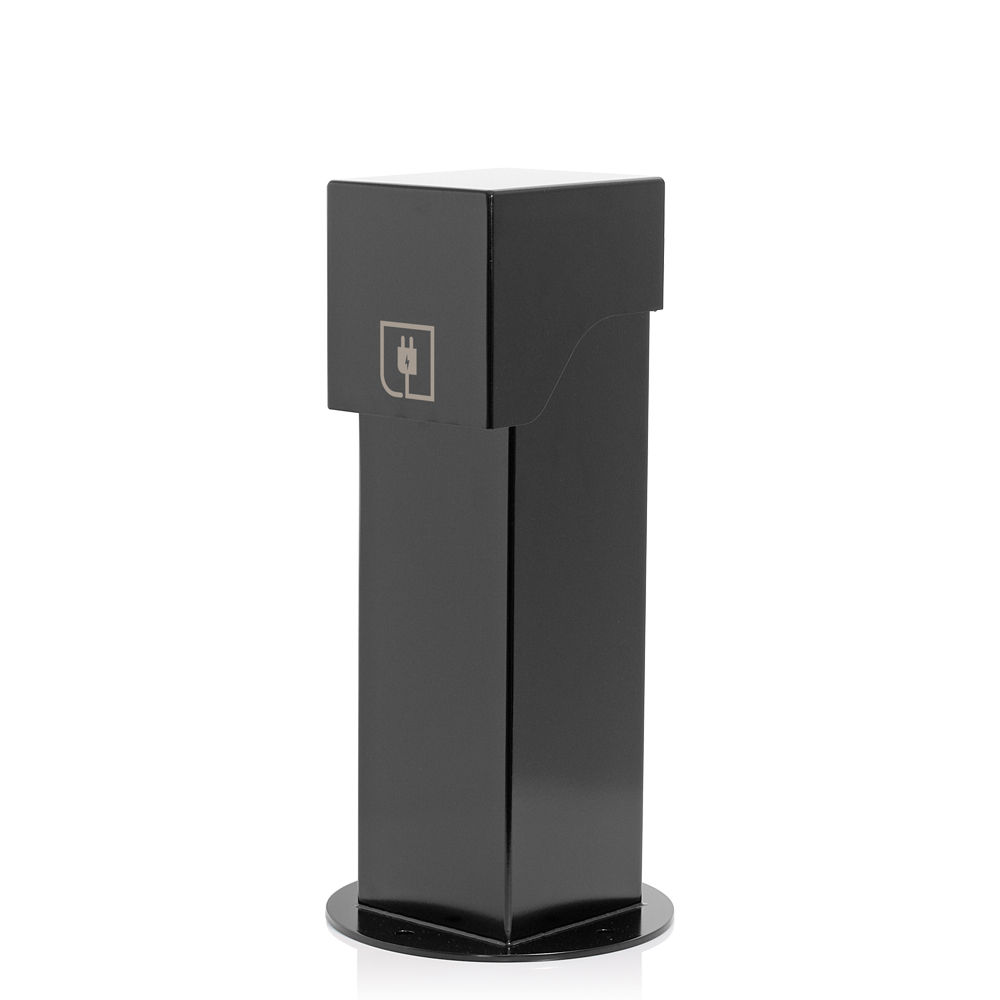

Power Pedestal, Standard Hinge, Surface Mount
2PH18-E
2-Gang 18” Stainless Steel Power Pedestal, Surface Mount, NEMA 3R, Lockable Hinged Top, Self-Closing Lid, Black, Stainless Steel
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Pedestals are proudly made in the USA
Color: Black
Product Information
Electrical Specifications
Max. Amperage : 30A Max
Standards & Certifications
Certification/Listing : cULus
Product Features
Application : Commercial|RV/Campsites
Base : Pedestal
Color : Black
Hinge Type : Standard
Receptacle Compatibility : Decora Style
Top : Lockable Hinged Top
Material Specifications
Construction : Welded pedestal body, base and weatherproof cover
Grounding : Stainless Steel (Pre-installed Lug)
Mounting Hardware : Anchors Included
Pedestal Material : 304 Stainless Steel (14 gauge body and cover, 7 gauge base)
Mechanical Specifications
Conduit Feeds : Accommodates two 1-1/2" conduit raceways
Height : 18"
Maximum Dimensions : 18.0"H x 8.5"W x 8.5"D
Mounting Plate : 2-Gang Decora
Warranty
Warranty : 1-Year Limited
