Environmental Specifications

Environment : Corrosive

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 75°C

Mechanical Specifications

Product ID : Ratings and Catalogue No. molded into face

Terminal Accom. : #10 min to #4max AWG Solid or Stranded Wire

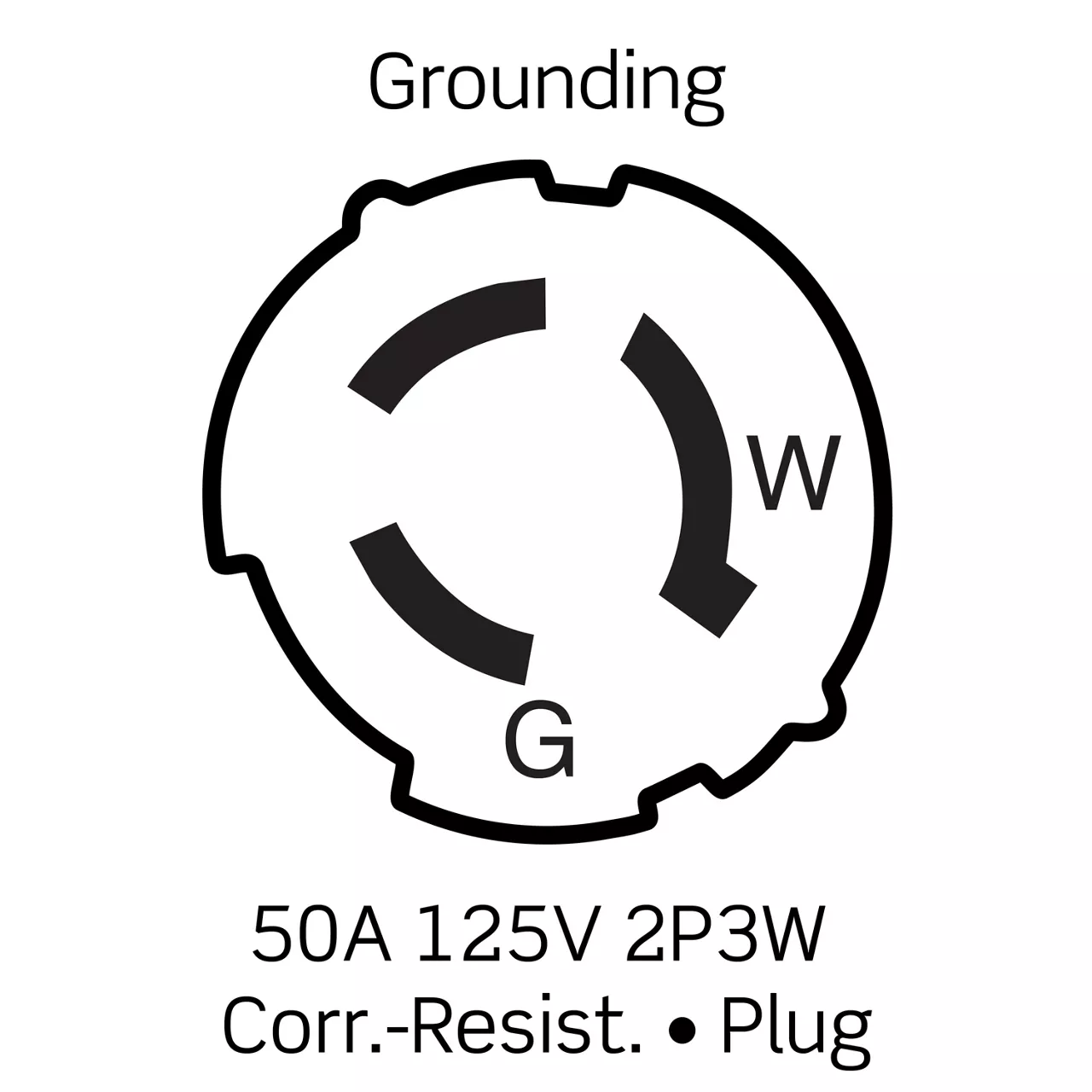

Terminal ID : X, W, Y, Z and Green for ground

Product Features

Brand : Black and White

Color : Gray Metal

NEMA : Non-NEMA

Electrical Specifications

Amperage : 50 A

Current Interrupting : Certified for current interrupting at full rated current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Grounding

Maximum Working Voltage : 125V as rated

Pole : 2

Temperature Rise : Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current

Voltage : 125 VAC

Wire : 3

Material Specifications

Body and Contract Carrier : Reinforced Nylon

Color : Gray Metal

Face Module : Nylon

Flanged Casing : Zinc Plated Brass

Ground Shunt : Nickel Plated Bronze

Grounding Shunt Rivet : Nickel Plated Brass

Inlet Blade : 0.100inch thick Nickel Plated Brass

Terminal Block : 0.062inch thick Nickel Plated Copper

Terminal Set Screw : SS 302/304

Standards and Certifications

CSA C22.2 No. 42 : File 152105

NOM : 057

RoHS : Compliant

UL498 : File E13399

Warranty : Lifetime Limited
