Environmental Specifications

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 60°C

Material Specifications

Body Material : Thermoplastic Nylon

Clamp Nuts : Zinc-Plated Steel

Face Material : Thermoplastic Nylon

Grounding Screw : Brass 8-32

Terminal Screws : Brass 10-32

Yoke : Zinc-Plated Steel

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File 152105

NEMA : WD-6

NOM : 057

UL1449 Std. 2nd Edition : File E146315

UL498 : File E13399

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, White-Neutral

Termination : Back or Side Wire

Performance Data

Diagnostics : Indicator Light & Audible Alarm

Joules Rating : 720

MCOV : 150V rms

Max Surge Current L-N : 24kA

Noise Rejection : -30dB at 500kHz-30MHz

Short Circuit Current Rating : 5kA

UL1449 Impulse 6kV/500A L-N : 400V

VPR : L-N:600V, L-G:700V, N-G:600V

Electrical Specifications

Amperage : 20 A

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Pole : 2

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 125 VAC

Wire : 3

AC Horsepower Ratings

At Rated Voltage : 1 HP

Product Features

Amperage : 20 A

Body Material : Thermoplastic Nylon

Brand : Decora Plus

Color : Gray

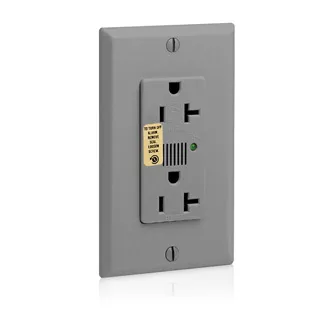

Device Type : Duplex Receptacle Outlet

Diagnostics : Indicator Light & Audible Alarm

Face Material : Thermoplastic Nylon

Feature : Surge

Function : Surge Protective

Grade : Commercial Specification Grade

Joules Rating : 720

Max Surge Current L-N : 24kA

NEMA : 5-20R

Noise Rejection : -30dB at 500kHz-30MHz

Pole : 2

Standards and Certifications : UL/CSA

Strap Material : Steel

Termination : Back or Side Wire

UL1449 Impulse 6kV/500A L-N : 400V

Voltage : 125 VAC

Warranty : 5-Year Limited

Wire : 3
