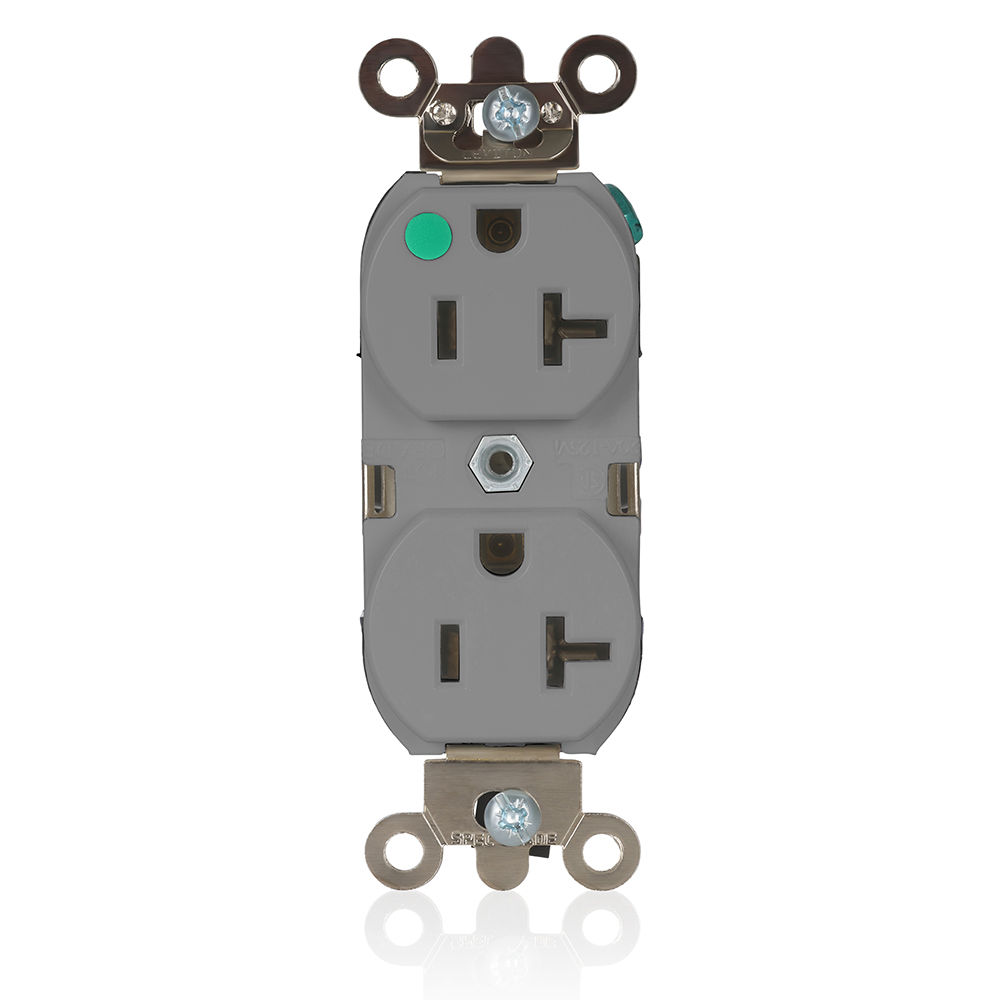

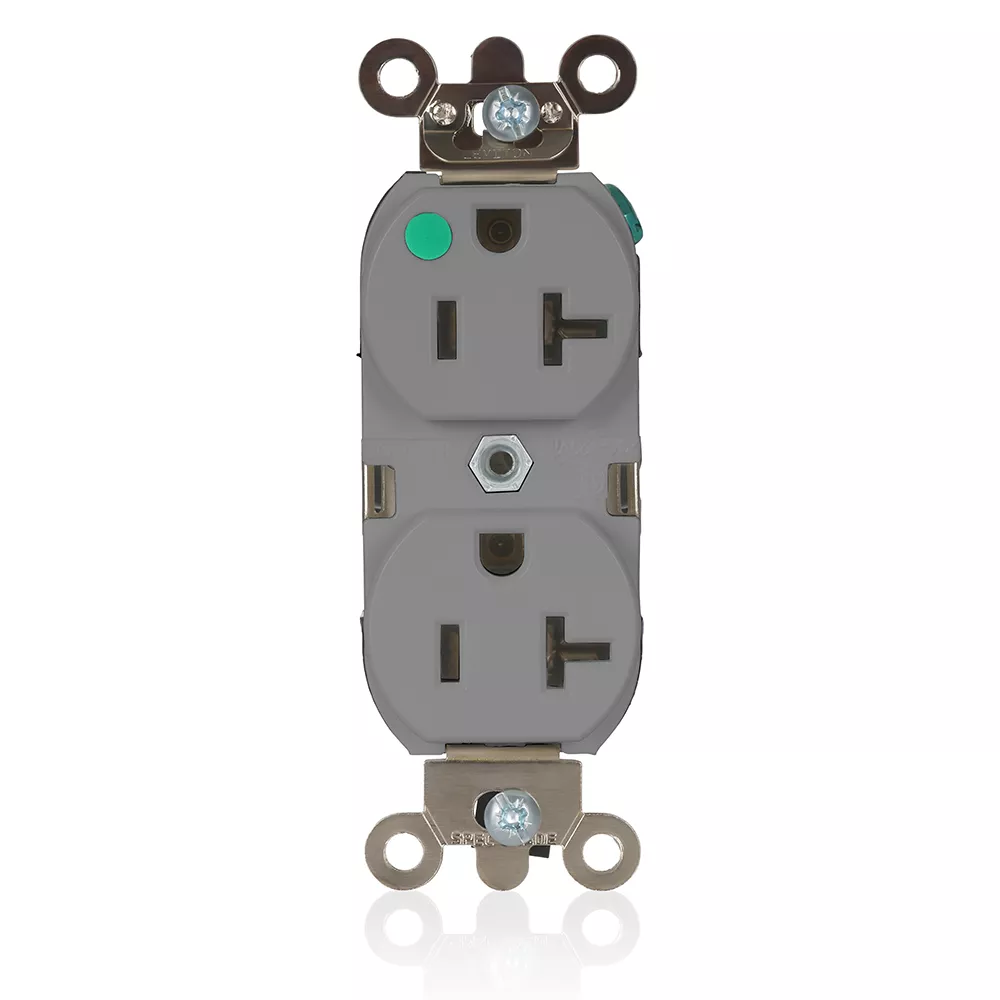

20 Amp Duplex Receptacle/Outlet, Hospital Grade, Illuminated, Self-Grounding
8300-HLG
Color: Gray
Product Information
AC Horsepower Ratings
AC Horsepower Ratings : 1 HP
Standards and Certifications
ANSI : C-73
CSA C22.2 No. 42 : File 152105
NOM : 057
RoHS : Non-Compliant
UL 498 : File E13399
UL Fed Spec WC-596 : File E13399
Warranty : 10-Year Limited
Electrical Specifications
Amperage : 20 A
Current Limiting : Full Rated Current
Dielectric Voltage : Withstands 2000V per UL498
Grounding : Self-Grounding
Pole : 2
Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current
Voltage : 125 VAC
Wire : 3
Environmental Specifications
Flammability : Rated V-2 per UL 94
Mechanical Specifications
Product ID : Markings are permanently marked on device
Terminal Accom. : 14-10 AWG
Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral
Termination : 14-10 AWG
Product Features
Color : Gray
Device Type : Duplex Receptacle Outlet
Grade : Commercial Specification Grade
Grounding : Self-Grounding
NEMA : 5-20R
Strap Material : Steel
Warranty : 10-Year Limited
Material Specifications
Body Material : Nylon
Clamp Nuts : Zinc-Plated Steel
Color : Gray
Ground Clips : Nickel-Plated Brass
Grounding Screw : Steel 8-32
Line Contacts : Phosphor Bronze
Strap Material : Steel
Terminal Screws : Brass
Yoke : Zinc-Plated Steel
