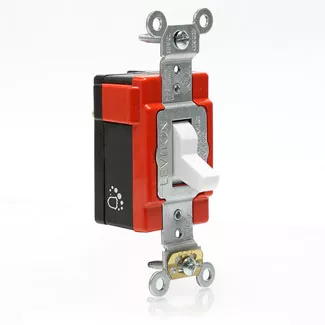

Product Features

Brand : Lev-Lok

Color : White

Device Type : Toggle Switch

Feature : Antimicrobial

Function : Single-Pole

Grade : Extra Heavy-Duty Industrial Specification Grade

Material Specifications

Base Material : Thermoplastic

Contacts : Silver-Alloy

Cover Material : Thermoplastic

Ground Clips : Brass

Grounding Screw : Steel 8-32

Strap Material : Galvanized Steel

Terminal Screws : Brass 8-32

Toggle : Antmicrobial Urea

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Terminal Accom. : 14-#10 AWG back wired; #14-#12 AWG side wired

Terminal ID : Brass-Hot Black-Hot White-Neutral Green-Gnd

Termination : Back or Side Wire

Warranty

Warranty : 10-Year Limited

Electrical Specifications

AC Horsepower Ratings : 1HP-120V 2HP-240V, 16A Max

Amperage : 20 A

Dielectric Voltage : Withstands 1500V for 1 minute

Endurance : 50,000 cycles minimum

Grounding : Self-Grounding

Overload UL20 Test : 100 cycles of OL at 4.8 times rated current

Temperature Rise : Maximum 30 degrees C rise

Voltage : 120/277 VAC

Environmental Specifications

Flammability : Rated HB or better UL94

Operating Temperature : -40°C to 65°C

Storage Temperature : -40ºC to 65ºC

Standards and Certifications

CSA C22.2 No. 111 : File #152105

ISO 22196 : Measurement of Antibacterial Activity on Plastics and Other Non-Porous Surfaces

JIS Z 2801:2000 : Test for Antimicrobial Activity and Efficacy

NEMA : WD-1 & WD-6

NOM : NOM-ANCE

UL Fed Spec WS896E : File #E7458

UL Standard : UL 20
