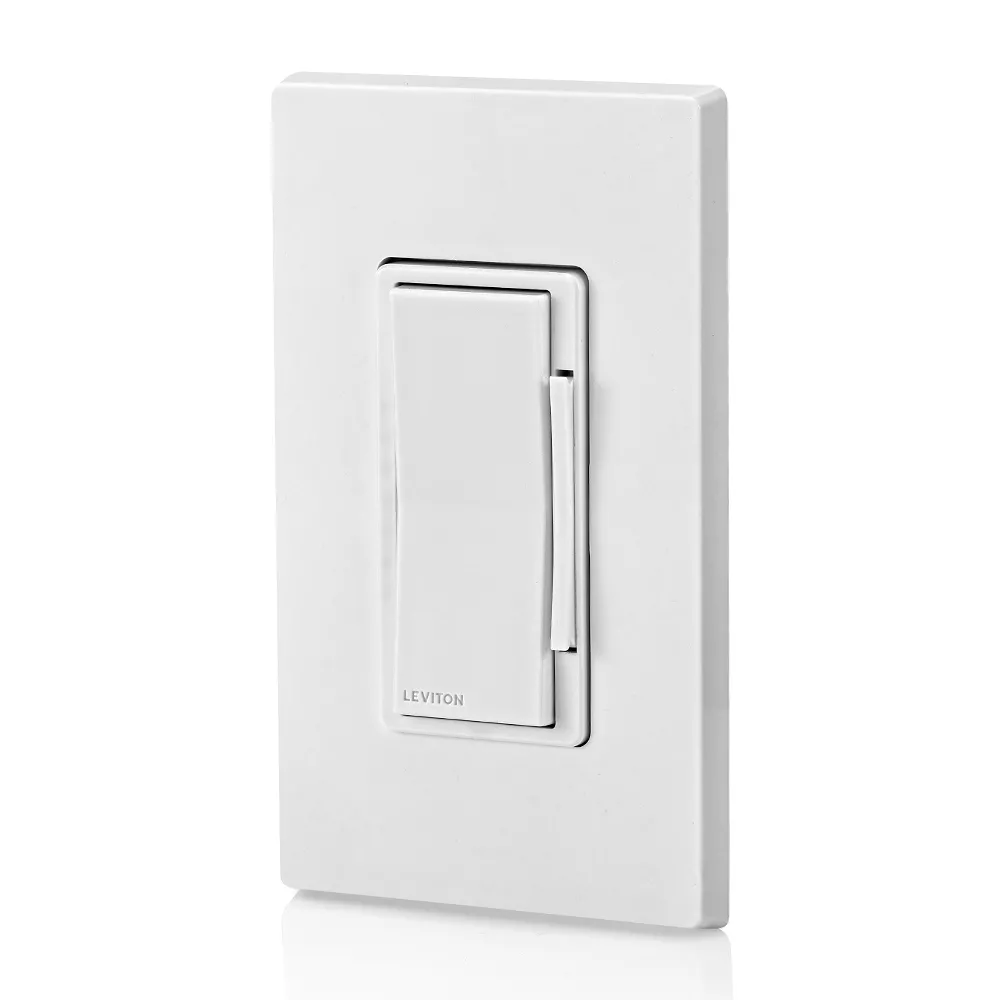

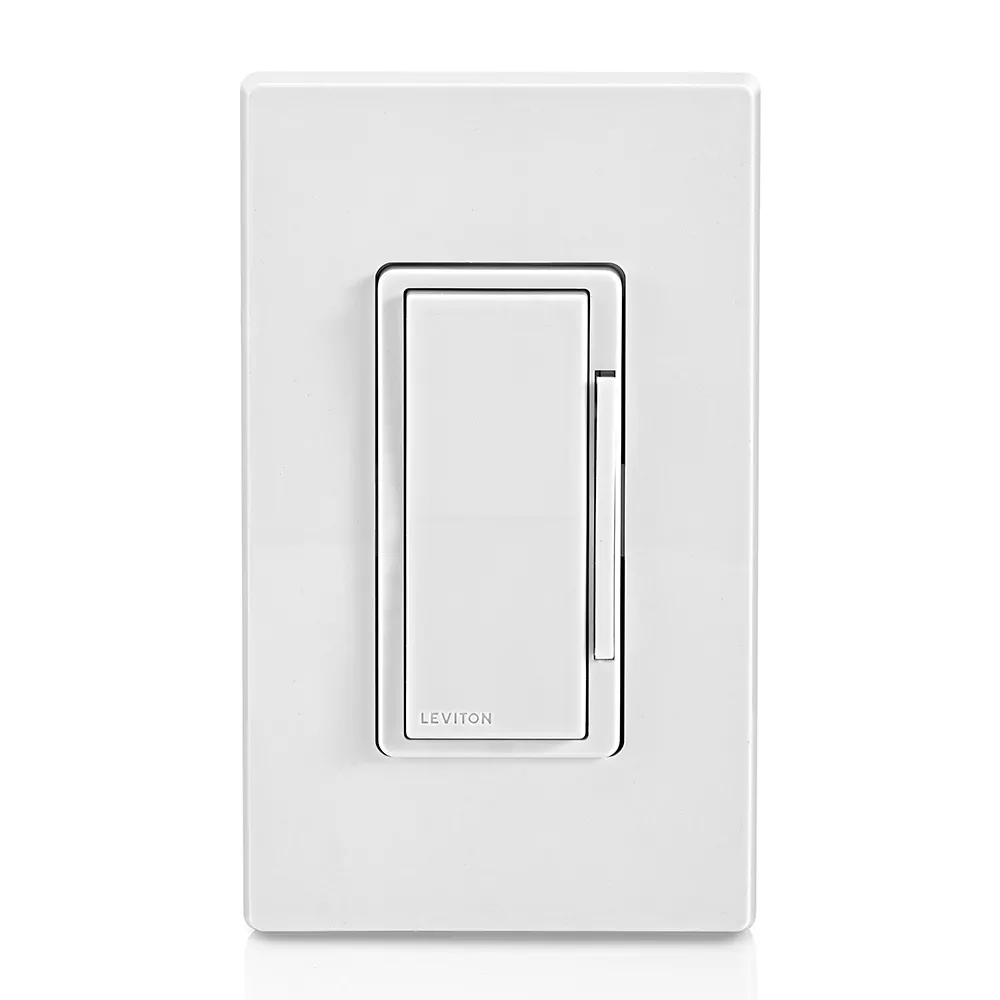

Decora Smart Dimmer Switch, Z-Wave 800 Series, Neutral Wire Required
ZW6HD-1RW
Decora Smart Dimmer, Z-Wave 800 Series. 300W LED, 300W CFL, 600W Incandescent/Halogen, 600VA Magnetic Low Voltage, wallplate sold separately - White
BENEFITS
- Create an elegant ambiance - set the mood for dinner, dim the lights to create a movie theatre experience, turn the lights down low to wind down for bedtime
- Know if lights are on and adjust them whether you’re home, at work, or on vacation - control from anywhere using a compatible Z-Wave hub
- Personalize your lighting - customizable fade rates that gradually turn lighting on or off, or preset light level options to make sure lights always come on at the level you want
- Use your voice for control without lifting a finger - using a compatible Z-Wave hub
- Prevent flickering lights - designed for compatibility with dimmable LED bulbs and fixtures with settings to fine-tune performance

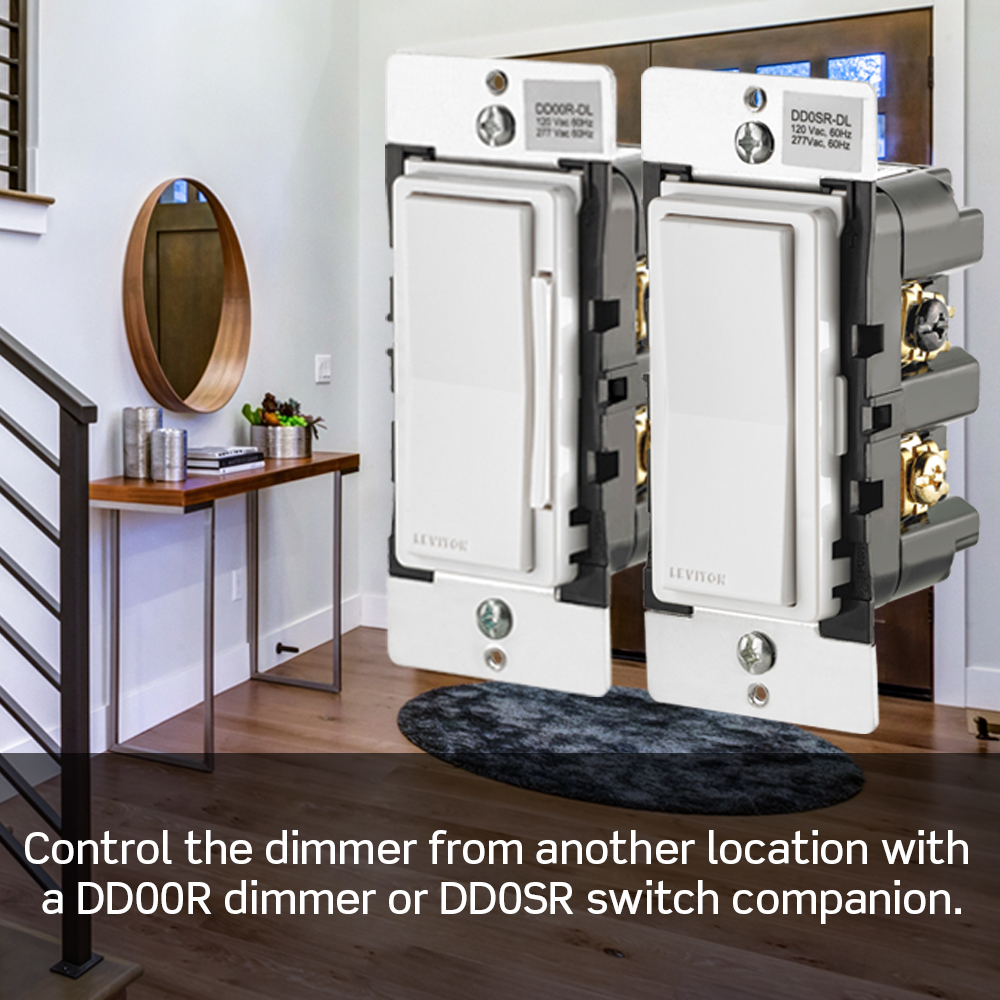

- Control this dimmer from another wall location in your home - pairs with DD00R or DD0SR Wired Dimmer or Switch Companions
- Increase the reliability of your Z-Wave network - acts as a repeater to strengthen your Z-Wave Mesh network
FEATURES
- Full range dimming - on/off and dim/bright control of dimmable LED, CFL, Incandescent, Halogen, and MLV lighting
- Remote access, voice command, and scheduling - as part of a Z-Wave smart home solution
- Easy Install - replaces your existing switch; wire leads and slim design make install a breeze
- Let there be light - double press the top rocker to quickly snap on at maximum brightness
- Lights won’t glow when you turn the dimmer off - “Off Means Off” technology ensures low-wattage LED bulbs don’t glow in the off state
- Single Pole or 3-Way - works with DD00R Wired Dimmer Companion or a DD0SR Wired Switch Companion
- Change the color - using DDKIT faceplates available in six colors
TECH SPECS
- Requires Neutral Wire
- Z-Wave Plus Network - 908.40, 908.42, 916.00 MHz
- Z-Wave Range: 50 feet to the hub or another Z-Wave enabled repeater
Product Information
Standards and Certifications
Standards and Certifications : UL, FCC, CSA, NOM, IC, Z-Wave Plus
Warranty
Warranty : 2-Year Limited
Electrical Specifications
Load Rating : 300W LED/CFL, 600W Incand/ Halogen, 600VA Magnetic Low Voltage
Material Specifications
Color : White
Optional Color Change Kits Available : Yes, DDKIT in Black, White, Light Almond, Ivory, Gray, and Brown
Strap Material : Metal
Environmental Specifications
Operating Temperature : 0°C to 40°C (32° – 104° F)
Operating Humidity : – 10% to 90% non-condensing
Product Features
Brand : Decora Smart Z-Wave
Device Type : In-Wall Smart Dimmer
Grade : Residential
Hub Required : Yes
- For use with modern Z-Wave hubs to enable app commands, scheduling, and voice control of connected lighting
- Compatible with any Z-Wave enabled network, regardless of the manufacturer, and can also be used with other devices displaying the Z-Wave logo; backwards compatible with all generations of Z-Wave devices
- ZW6HD acts as a repeater to help increase the reliability of the Z-Wave network
- Supports Z-Wave 8th generation mesh wireless for control of connected lighting with certified Z-Wave hubs
- Meets the Z-Wave specification for the latest in speed, performance, and security
- Supports SmartStart enrollment when used with a Z-Wave controller that supports SmartStart inclusion. Also supports Network wide inclusion, and Classic inclusion enrollment methods
- Supports S2 Security and Z-Wave Over-the-Air updates
- Reference the Getting Started Guide for installation instructions and Advanced Options that can be configured over the Z-Wave network as well as a list of supported Z-Wave associations and classes
