Mechanical Specifications

Lead Identification : Leads identified in accordance with UL 498 (black, white & green)

Product ID : Ratings are permanently marked on device

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot Black-Hot White-Neutral Green-Gnd

Termination : Pre-Wired Leads

Torque Range : 12-14 inch pounds

Material Specifications

Actuator Material : Thermoplastic

Base Material : Urea

Body Material : Thermoplastic

Color : Ivory

Contacts : Silver-Cadmium .031 Thick

Cover Material : Urea

Grounding Leads : 6", #12 AWG THHN

Mounting Screws : Triple Combination Head, Steel

Mounting Strap : Steel

Strap Material : .048” Thick Galvanized Steel

Terminal Leads : 6", #12 AWG THHN

Termination : Pre-Wired Leads

Electrical Specifications

Amperage : 15 A

Current Interrupting : Certified for current interrupting at full rated current

Dielectric Voltage Withstand : 1500V minimum

Grounding : Self-Grounding

Max. Amperage : 12 Amp

Maximum Working Voltage : 120/277 VAC as rated

Temperature Rise : Maximum 30 degress C rise

Voltage : 120/277 VAC

Product Features

Color : Ivory

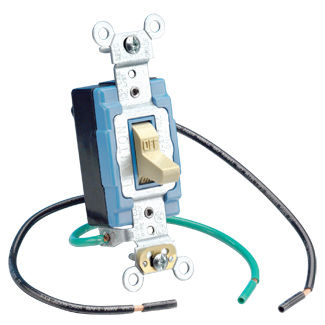

Device Type : Toggle Switch

Function : 3-Way

Grade : Extra Heavy-Duty Industrial Specification Grade

Termination : Pre-Wired Leads

Voltage : 120/277 VAC

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 111 : File #152105

NEMA : WD-1 & WD-6

NOM : 057

UL Fed Spec WS896E : File #E7458

UL Standard : UL 20

Warranty : 2-Year Limited

Environmental Specifications

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 65°C

AC Horsepower Ratings

HP Rating : 1/2HP-120V 2HP-240V-277V
