Photocell, Low Voltage, 0-10V Dimming
ODC0P-D0W
Photocell, Dimming, Set/Off, Fade Rate: 3 Min (MFG Range 1-1600FC), Title 24 Compliant, ASHRAE 90.1 Compliant
The Leviton ODC0P-D0W is an interior low voltage photocell capable of continually dimming between 1-10VDC based on the amount of natural light contribution. It is a lowpower, high-sensitivity mini-daylight harvesting system for precise monitoring of either task or ambient light levels.
Product Information
Electrical Specifications
Input Voltage : 12 - 24VDC
Voltage Type : Low Voltage
Standards and Certifications
FCC : Compliant
Standards and Certifications : UL 916 Listed
Performance Specifications
FCC : Compliant
Foot Candle Level : 1-1,600 FC (10-16,000 LUX)
Standards and Certifications : UL 916 Listed
Environmental Specifications
Foot Candle Level : 1-1,600 FC (10-16,000 LUX)
Operating Temperature : 0°C to 55°C
Relative Humidity : 20% to 90% non-condensing
Product Features
Operating Temperature : 0°C to 55°C
Product Line : Photocell
Product Type : Indoor Photocell
Relative Humidity : 20% to 90% non-condensing
- Dimmed lighting at a desired daylight design level offers greater energy savings and comfort and improved energy efficiency
- Leviton-exclusive, patented Auto-Calibration™ eliminates the need for configuring labor costs during daylight harvesting configuration
- Industry-exclusive fail-safe circuitry: in the event of product failure, return-to-closed feature causes the relay to default to ON which eliminates life safety concerns

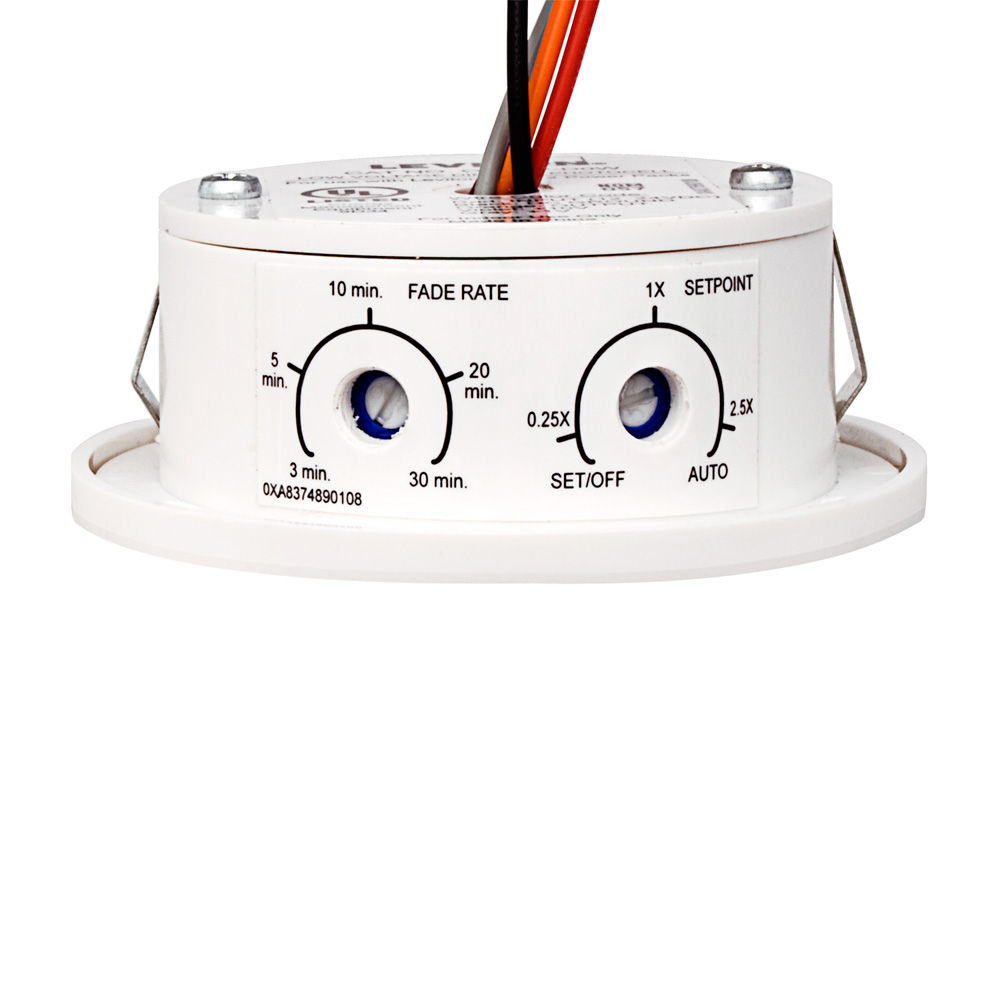

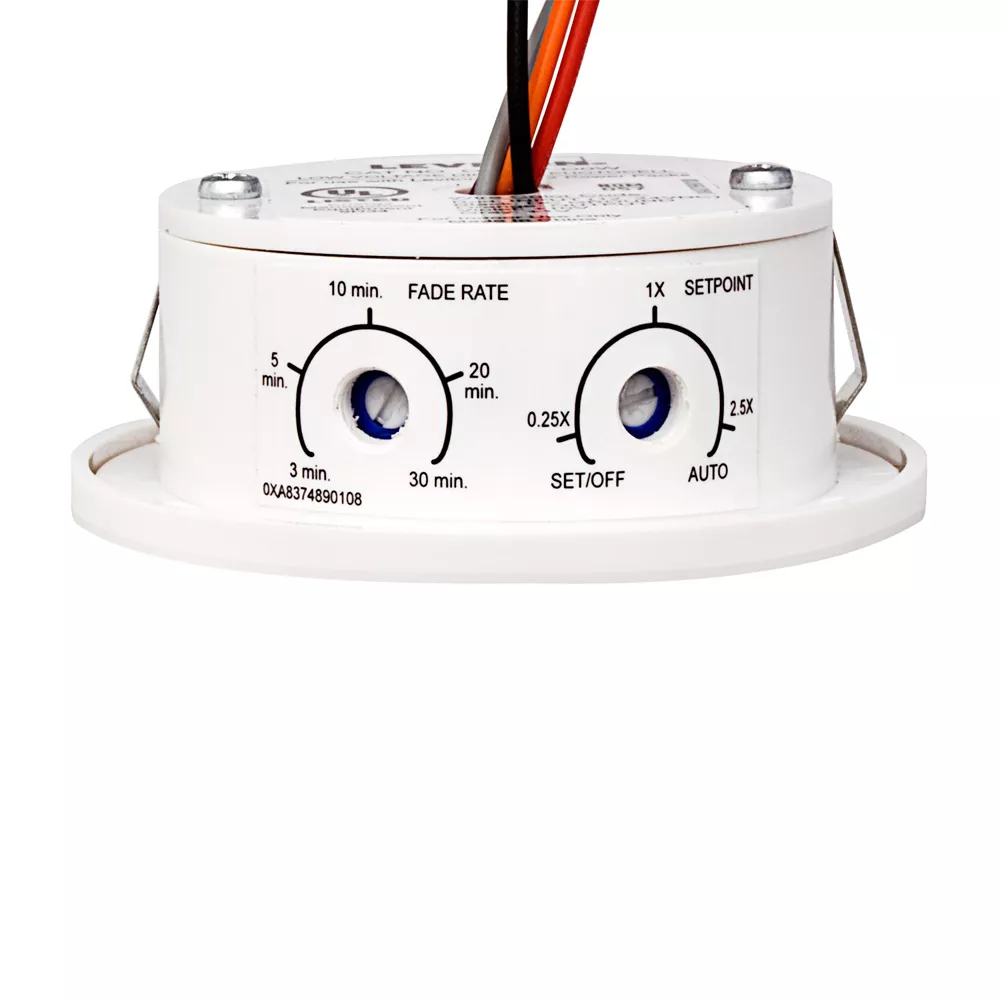

- Fade rate time setting 3-30 minutes
- Controls 1-10V sinking ballast
- No additional power supply required for 1-10V sinking operation
- Dim to OFF — over DDL for 30 seconds then lights OFF
- Test Mode — 30 second fade rate for 15 minutes then auto exit
- Provides ultra-convenient, hands-free lighting control
- Measures light from any source in the visible spectrum within a 60º cone at 8-12’ mounting height
- Provides continual measurements to control the lighting
- Photocell sensor Mounts on ceiling — surface mount or low-profile flush mount
- LED status indicators for ease of installation
