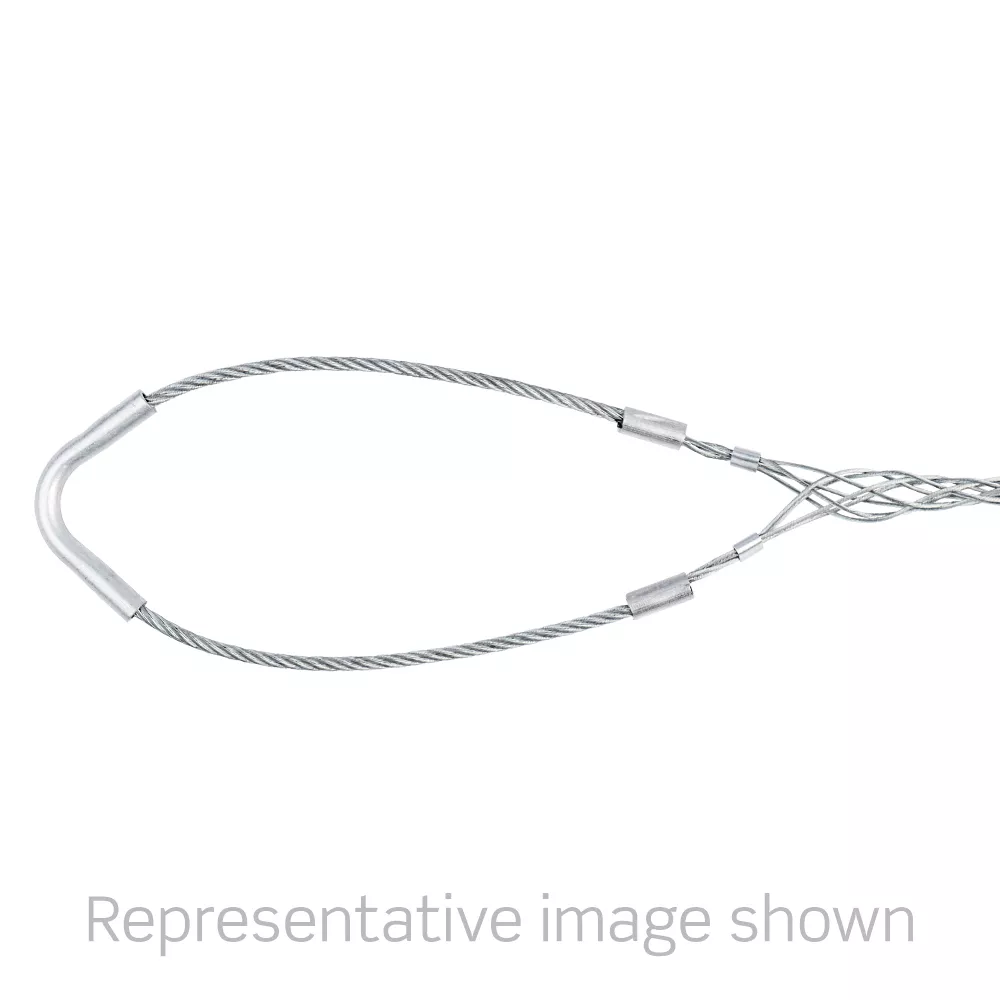

Support Grip, 0.82-1.00"
L7986-100
Support, Service Drop Grip, Single Eye Service Drop Grip, 0.82-1.00" Galv- Breakload is 1,900 LB
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
- Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables
Product Information
Product Features
Device Type : Support Grip
Material Specifications
Mesh Material : Galvanized Wire
Mechanical Specifications
Approx. Break Strength : 1900 lbs (862 kg)
Bale Length : 9 in (228.6 mm)
Cable Range : 0.82 - 1.00 in (22 - 25 mm)
Duty : Light
Eye Type : Single
Mesh Length : 8.5 in (216 mm)
Mesh Style : Closed
Standards and Certifications : UL
Weave : Single Weave
Workload Safety Factor (lbs) : 190 lbs (86.2 kg)
Warranty
Warranty : 1-Year Limited
