Pulling Grip, 0.62-0.74"
L8503-100

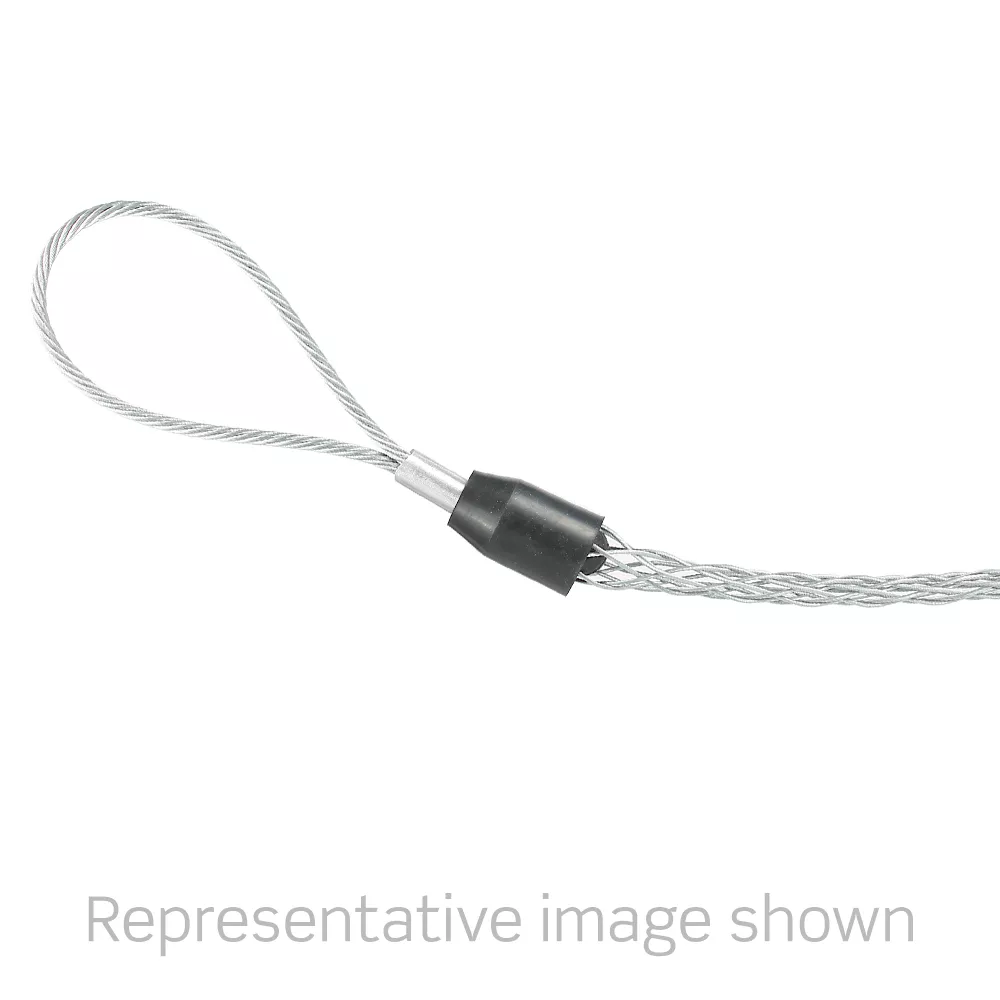

Pulling, Junior Pulling Grip, Flex Eye, 0.62-0.74"- Breakload is 1,950 LB
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Product Information
Mechanical Specifications
Approx. Break Strength : 1,950 lbs (884.5 kgs)
Bale Length : 4.5 in (114.3 mm)
Cable Range : 0.62 - 0.74 in (16 - 19 mm)
Duty : Light
Eye Type : Flex Eye
Mesh Length : 16.5 in (419.1 mm)
Mesh Style : Closed
Standards and Certifications : UL
Weave : Single Weave
Workload Safety Factor (lbs) : 650 lbs @ 3:1 (295 kgs @ 3:1)
Product Features
Device Type : Pulling Grip
Material Specifications
Mesh Material : Galvanized
Warranty
Warranty : 1-Year Limited
