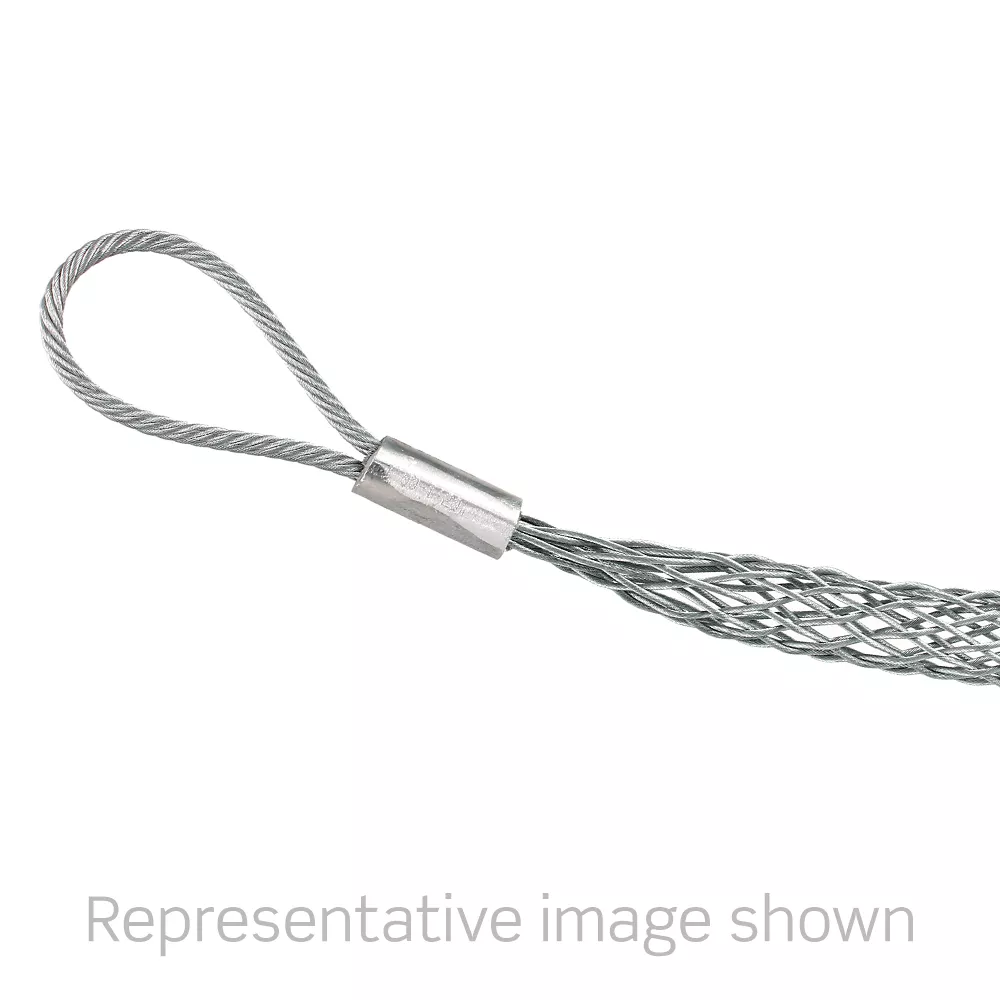

Pulling Grip, 1.00-1.50"
L8515-100
Pulling, Single Eye Cable Grip, Light Duty Single Eye, 1.00-1.50", Galv- Breakload is 7,840 LB
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Product Information
Product Features
Device Type : Pulling Grip
Material Specifications
Mesh Material : Galvanized
Mechanical Specifications
Approx. Break Strength : 7840 lbs (3556 kgs)
Bale Length : 4 in (101.6 mm)
Cable Range : 1.00 - 1.50 in (25.40 - 38.10 mm)
Duty : Light
Eye Type : Single
Mesh Length : 24 in (609.6 mm)
Mesh Style : Closed
Weave : Single Weave
Workload Safety Factor (lbs) : 2613 lbs @ 3:1 (1185 kgs @ 3:1)
Warranty
Warranty : 1-Year Limited
