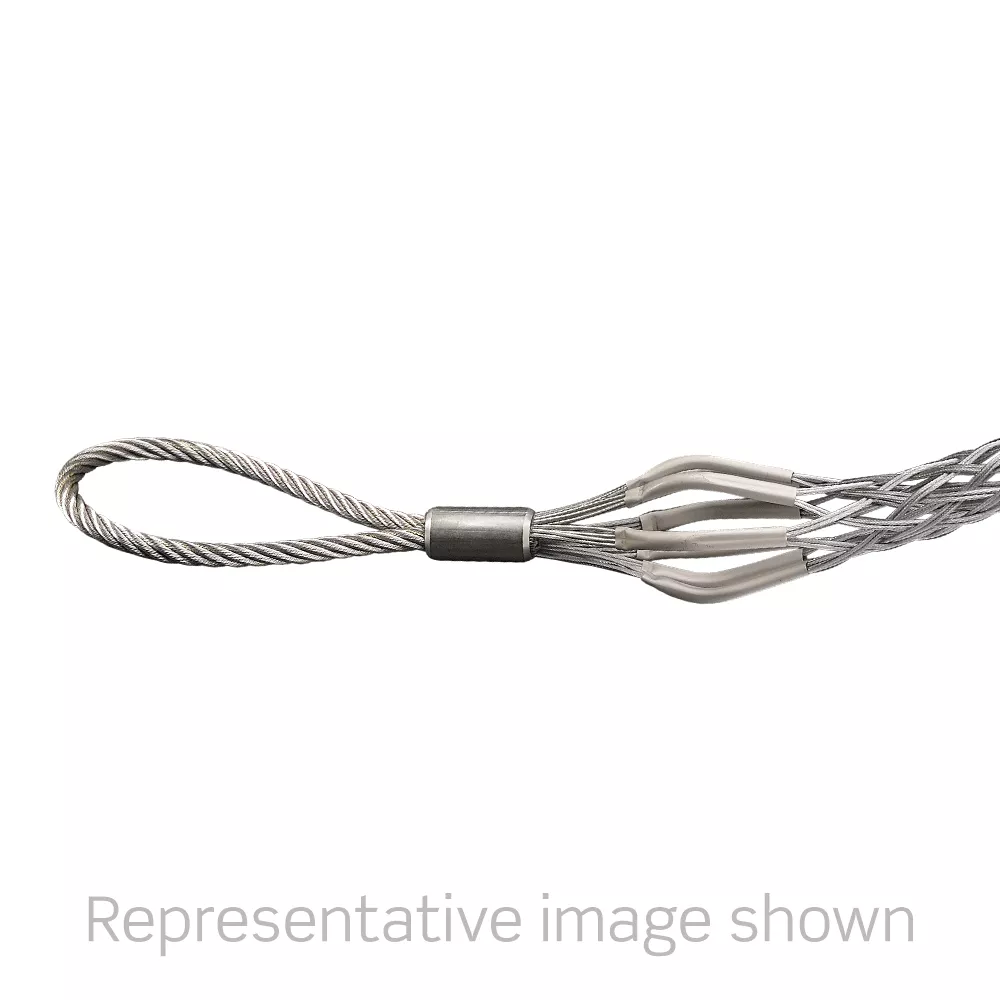

Pulling Grip, 2.50-3.50"
L8519-100
Pulling, Single Eye Cable Grip, Light Duty Single Eye, 2.50-3.50", Galv- Breakload is 13,440 LB
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Product Information
Product Features
Device Type : Pulling Grip
Material Specifications
Mesh Material : Galvanized
Warranty
Warranty : 1-Year Limited
Mechanical Specifications
Approx. Break Strength : 13,440 lbs (6096 kgs)
Bale Length : 4 in (101.6 mm)
Cable Range : 2.50 - 3.50 in (63.5 - 88.9 mm)
Duty : Light
Eye Type : Single
Mesh Length : 27 in (685.8 mm)
Mesh Style : Closed
Weave : Double Weave
Workload Safety Factor (lbs) : 4480 lbs @ 3:1 (2032 kgs @ 3:1)
