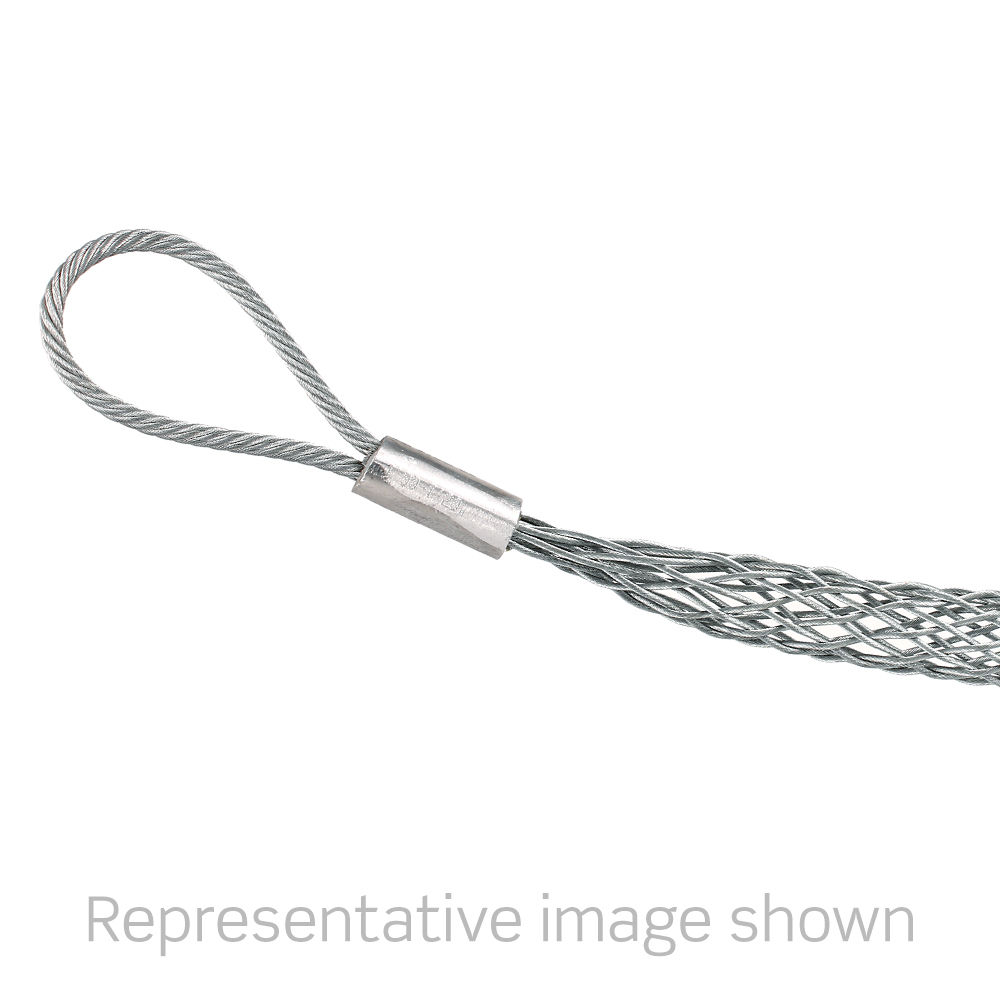

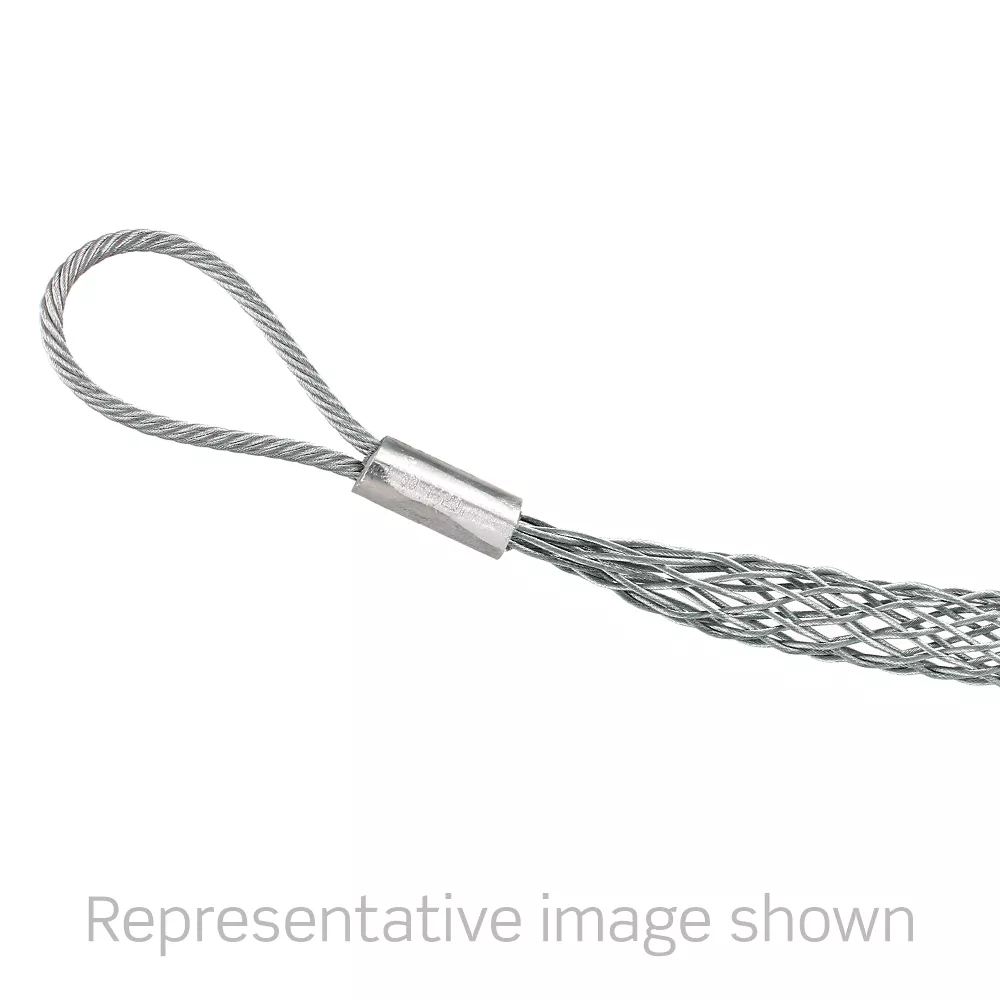

Pulling Grip, 0.50-0.75"
L8542-100
Pulling, Single Eye Cable Grip, Light Duty Single Eye, 0.50-0.75", Galv- Breakload is 2,240 LB
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Product Information
Mechanical Specifications
Approx. Break Strength : 2240 lbs (1016 kgs)
Bale Length : 3.5 in (88.9 mm)
Cable Range : 0.50 - 0.75 in (12.7 - 19.05 mm)
Duty : Light
Eye Type : Single
Mesh Length : 14 in (355.6 mm)
Mesh Style : Closed
Weave : Single Weave
Workload Safety Factor (lbs) : 746 lbs @ 3:1 (338 kgs @ 3:1)
Product Features
Device Type : Pulling Grip
Material Specifications
Mesh Material : Galvanized
Warranty
Warranty : 1-Year Limited
