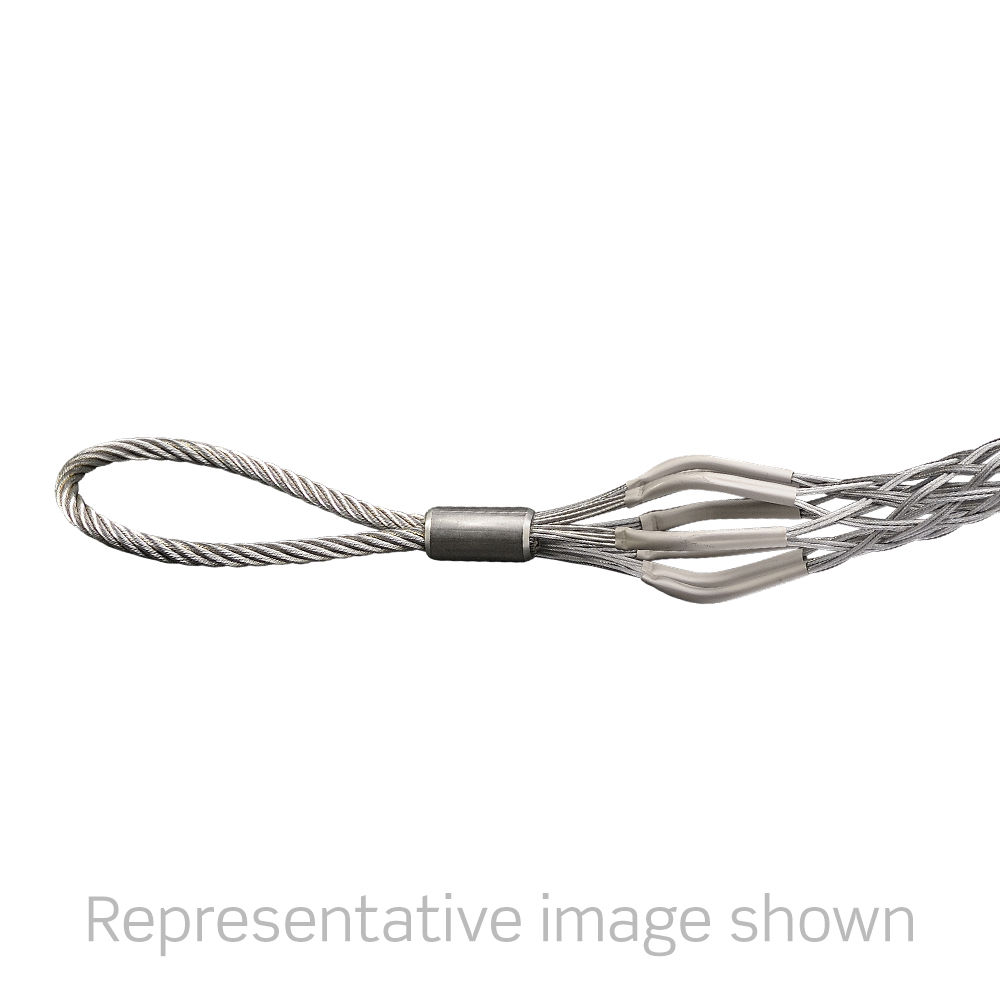

Pulling Grip, 1.50-2.00"
L8555-100
Pulling, Single Eye Double Weave Cable Grip, 1.50-2.00", Galv- Breakload is 16,400 LB
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Product Information
Mechanical Specifications
Approx. Break Strength : 16400 lbs (7438 kgs)
Bale Length : 4 in (101.6 mm)
Cable Range : 1.50 - 2.00 in (38.1 - 50.8 mm)
Duty : Heavy
Eye Type : Single
Mesh Length : 24 in (609.6 mm)
Mesh Style : Closed
Weave : Double Weave
Workload Safety Factor (lbs) : 5466 lbs @ 3:1 (2479 kgs @ 3:1)
Product Features
Device Type : Pulling Grip
Material Specifications
Mesh Material : Galvanized
Warranty
Warranty : 1-Year Limited
