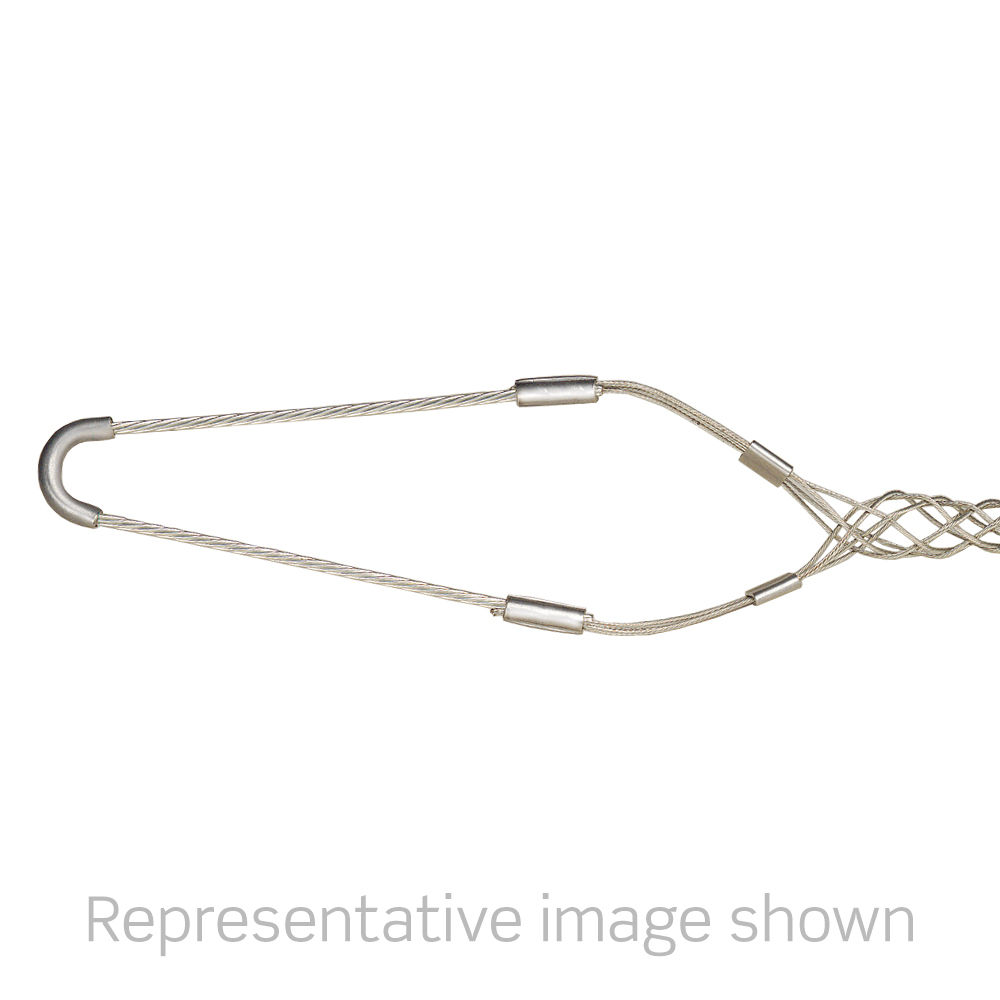

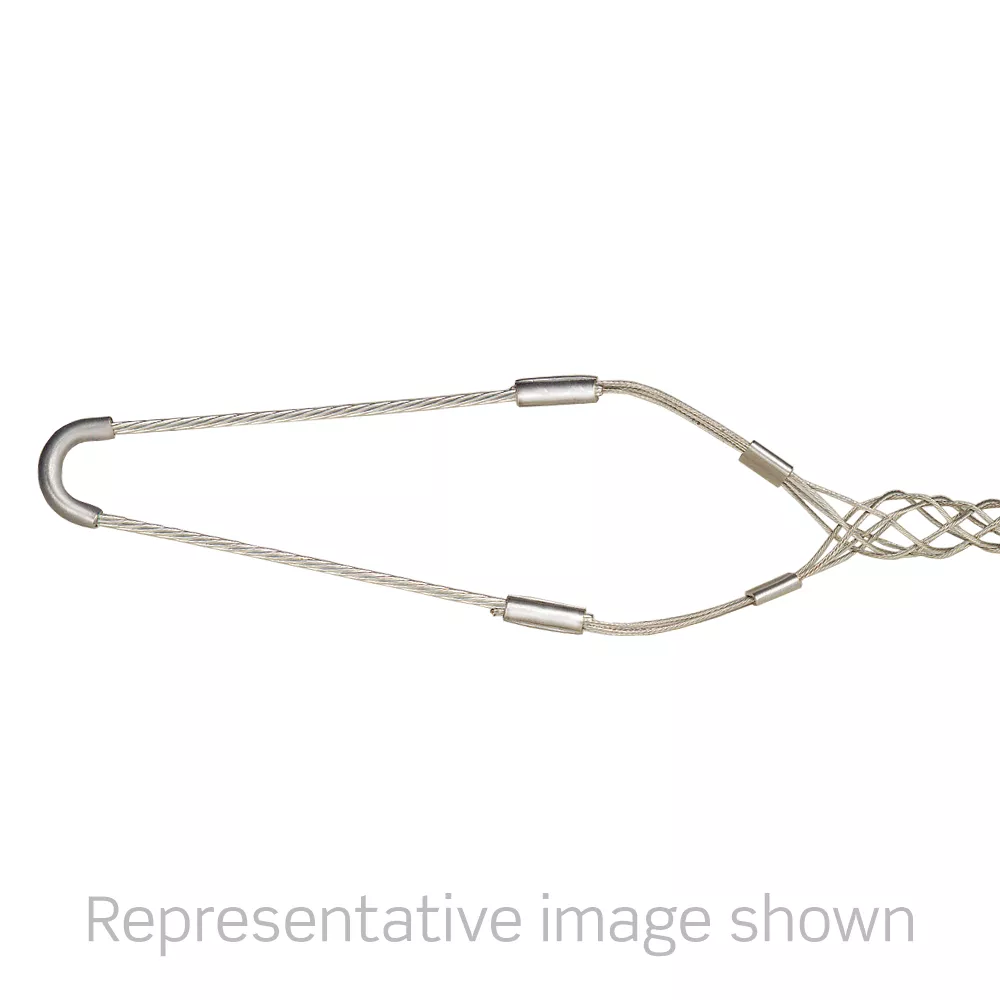

Support Grip, 0.41-0.56"
L8812-100
Support, Bus Drop Grip, 0.41-0.56" Galv- Breakload is 1000 LB
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
- Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables
Product Information
Product Features
Device Type : Support Grip
Material Specifications
Mesh Material : Galvanized Wire
Warranty
Warranty : 1-Year Limited
Mechanical Specifications
Approx. Break Strength : 1000 lbs (454 kg)
Bale Length : 6 in (152.4 mm)
Cable Range : 0.41 - 0.56 in (10.4 - 14.2 mm)
Duty : Light
Eye Type : Single
Mesh Length : 4.75 in (120.6 mm)
Mesh Style : Closed
Standards and Certifications : UL
Weave : Single Weave
Workload Safety Factor (lbs) : 55 lbs (24.9 kg)
