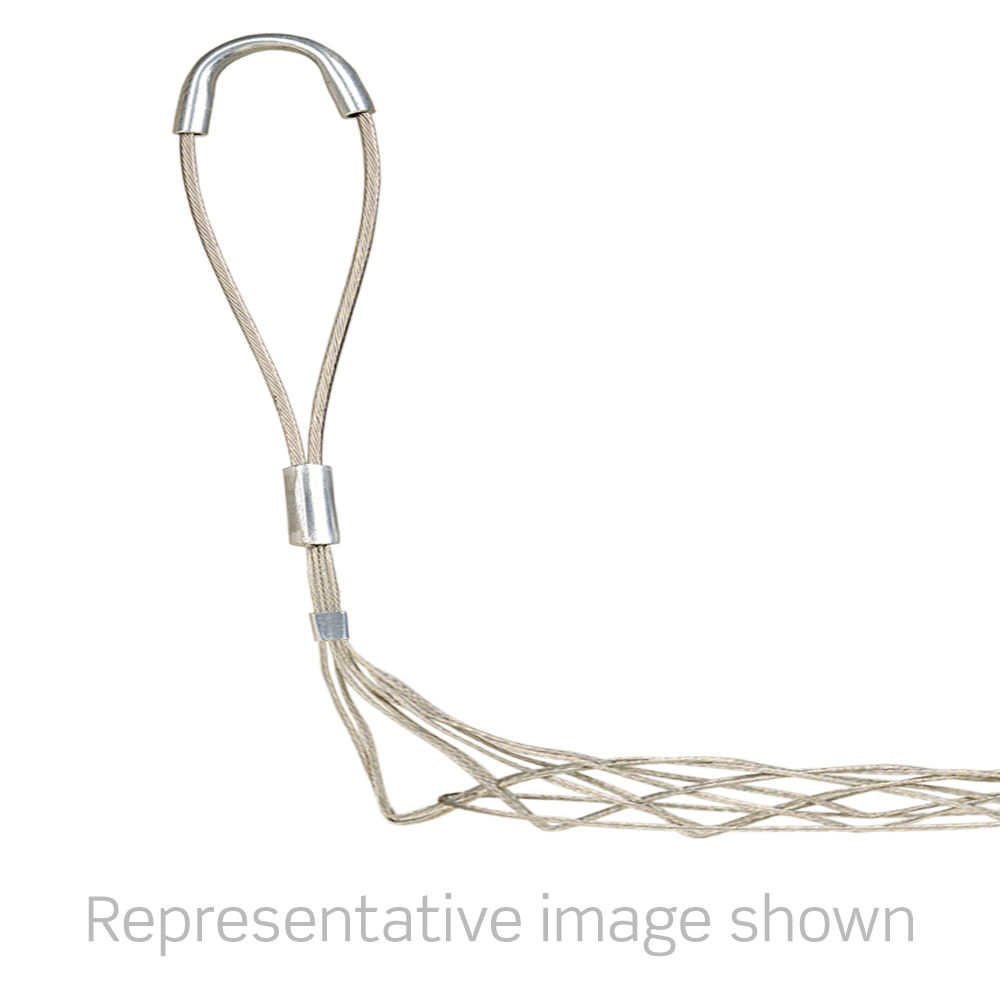

Support Grip, 1.00-1.25"

L9604-100

Support, Offset Eye Split Mesh Lace Closing Cable Support Grip, 1.00-1.25", 304 Stainless Steel- Breakload is 1,500 LB

  • Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
  • Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
  • Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables
UPC Code: 078477578582
Country of Origin : United Kingdom
RoHS Link: Yes

Product Information

  • Material Specifications

    Mesh Material : 304 SS

  • Mechanical Specifications

    Approx. Break Strength : 1500 lbs (680 kg)

    Bale Length : 6.5 in (165 mm)

    Cable Range : 1.00 - 1.25 in (25 - 31 mm)

    Duty : Standard

    Eye Type : Offset

    Mesh Length : 14 in (355 mm)

    Mesh Style : Open - Lace Closing

    Standards and Certifications : UL

    Weave : Single Weave

    Workload Safety Factor (lbs) : 150 lbs (68 kg)

  • Product Features

    Device Type : Support Grip

  • Warranty

    Warranty : 1-Year Limited
