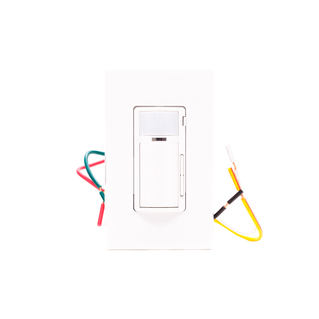

Decora Smart Motion Sensing Dimmer Switch, Wi-Fi 2nd Gen, Neutral Wire Required
D2MSD-1BW
Decora Smart Wi-Fi (2nd Gen) Motion Sensing Dimmer, 180° PIR field-of-view, up to 900 sq. ft. of motion coverage, supports both occupancy and vacancy modes of operation, single pole or 3-way when used with Wired Switch or Dimmer Companion or Wire-Free Anywhere Dimmer or Switch Companion. 300W LED/CFL, 450W Incandescent/Halogen, 450VA Magnetic Low Voltage, neutral wire required - White
- ULTIMATE CONVENIENCE: Provides the benefits of a smart dimmer plus hands-free control with built-in motion detection
- MY LEVITON APP: Easy set up and adjustment of schedules, motion sensor and dimmer settings, and remote control of lighting
- FULL RANGE DIMMING: Custom app settings for preset light levels, fade rates and bulb types
- CHOICE OF VOICE: Works with Hey Google, Amazon Alexa or Apple HomeKit/Siri
- UNIQUE, CUSTOMIZABLE SETTINGS: Motion snooze, night preset levels, guidelight, and room occupancy
- 3-WAY/MULTI-LOCATION: Additional control with Wired Dimmer and Switch Companions or with Wire-Free Anywhere Dimmer and Switch Companions
Product Information
Electrical Specifications
Load Rating : 300W LED/CFL, 450W Incand/ Halogen, 450VA MLV
Neutral Required : Yes
Termination : Wire Leads
Voltage : 120 VAC
Environmental Specifications
Operating Temperature : 0°C to 40°C
Product Features
Auto-ON/Auto-OFF : Yes
Brand : Decora Smart Wi-Fi
California Title 24 : Yes
Coverage (Sq.Ft.) : 180°, 900 Sq. Ft
Device Type : In-Wall Dimming Sensor
Grade : Residential
Hub Required : No
Sensor Technology : Passive Infrared
Sensor Type : Occupancy, Vacancy
Warranty
Warranty : Two-Year Limited
Standards and Certifications
Standards and Certification : UL, FCC, CSA, NOM, NEMA SSL 7A, Title 24
Material Specifications
Color : White
Optional Color Change Kits Available : No
Strap Material : Metal
- Control your lights from anywhere using the free My Leviton app for iOS and Android, no hub required
- Simplify control of your home – hands-free lighting control with automatic ON/OFF, Dim/Bright control, built-in motion and ambient light detection, or schedule lights and connected loads to dim/brighten or turn ON/OFF at specific times or based on sunrise/sunset
- Schedules are stored within the device and will run during a temporary internet outage
- Works with My Leviton, Amazon Alexa, Hey Google, HomeKit/Siri, IFTTT, SmartThings, Schlage
- Connects to Wi-Fi; No hub required
- Requires a neutral wire for installation
- Full Range dimming performance with LED, CFL, Incandescent, Halogen and Magnetic Low Voltage bulbs
- Custom settings in the My Leviton app for preset lighting levels, fade rates, bulb types and more including ON/OFF control of non-dimmable bulbs, such as fluorescent loads in garages or basements
- Motion Detection - 180° PIR sensor field-of-view; up to 900 sq. ft. major motion coverage
- Support for Occupancy and Vacancy Mode with the ability to change modes at the device or by using the My Leviton app
- Ease of installation with a product depth of 1.3” and wire leads
- Off Means Off – Low-wattage LED bulbs always turn completely off
- Supports 3-Way/Multi-location with Wired Companions or Wire-Free Anywhere Companions
- Using My Leviton, control up to 99 devices, 50 rooms,
- 50 activities, and 50 schedules per residence and up to 20 residences per account
- ca2572204
- ca2708330
- ca2798964
- mx315382
- mx321054
- us10048653
- us10062528
- us7683755
- us7924155
- us8664886
- us8981299
- us9329607
- us9767973
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
