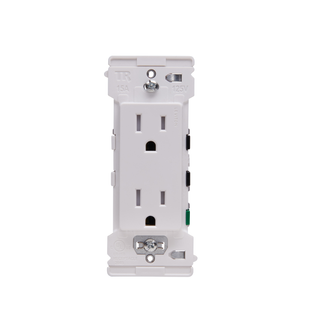

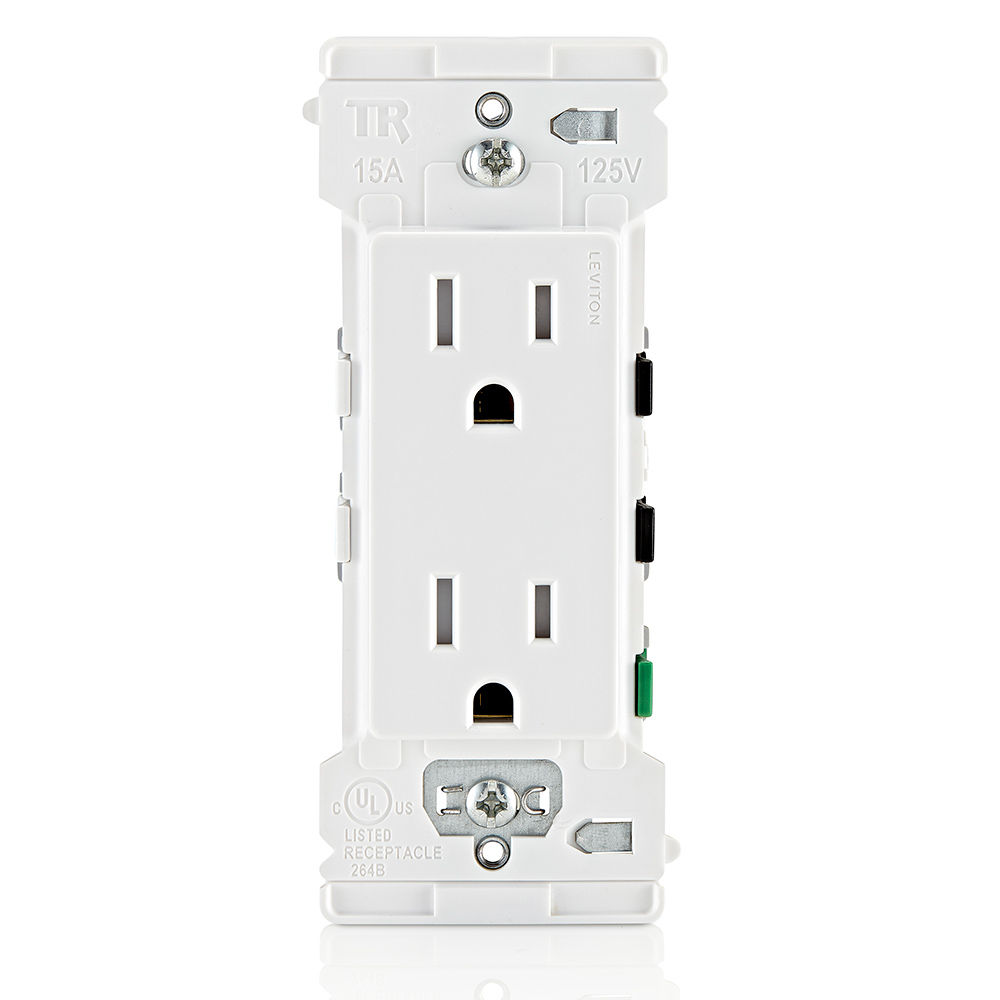

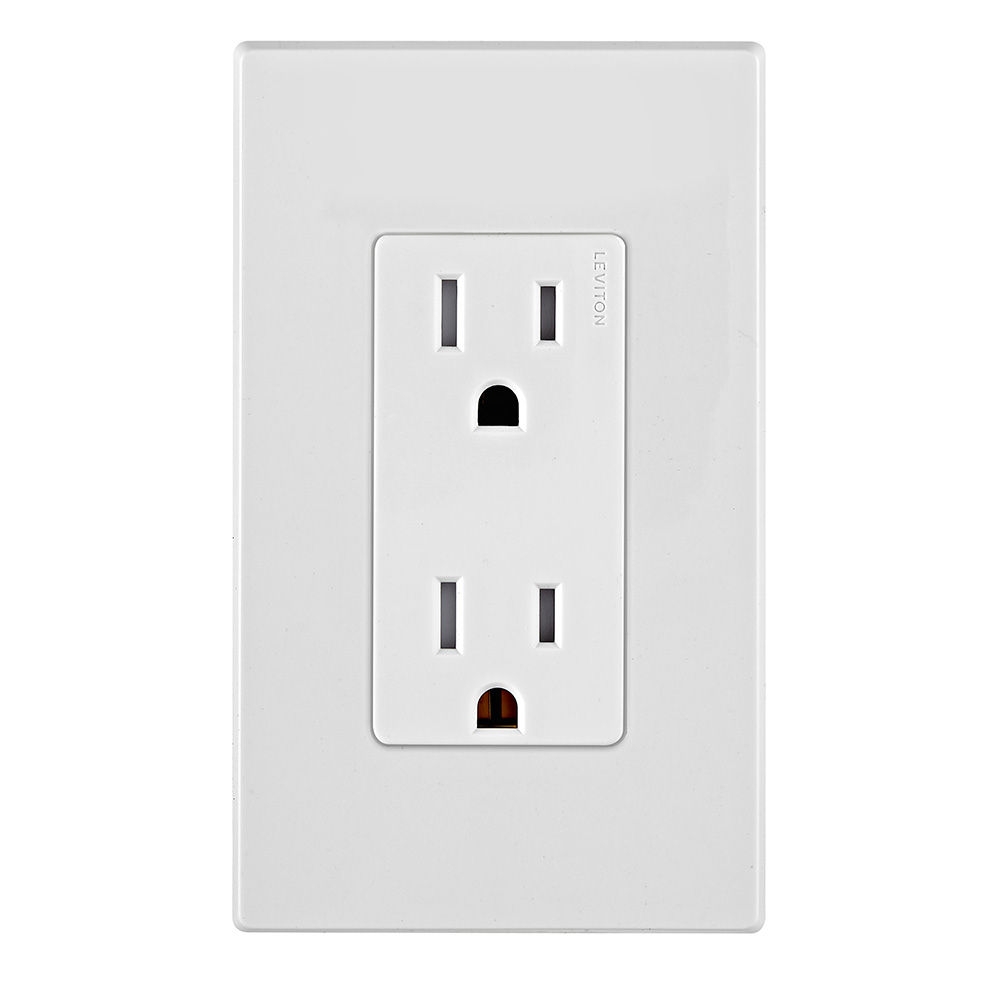

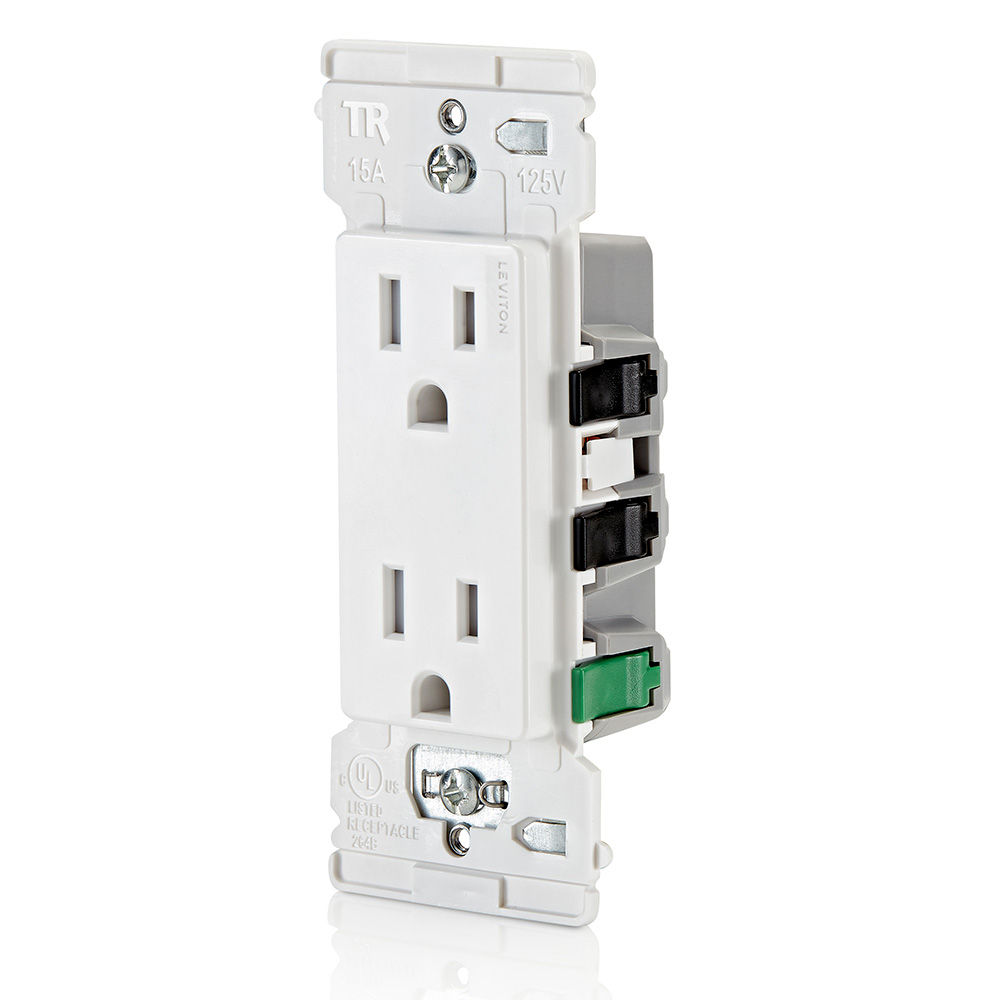

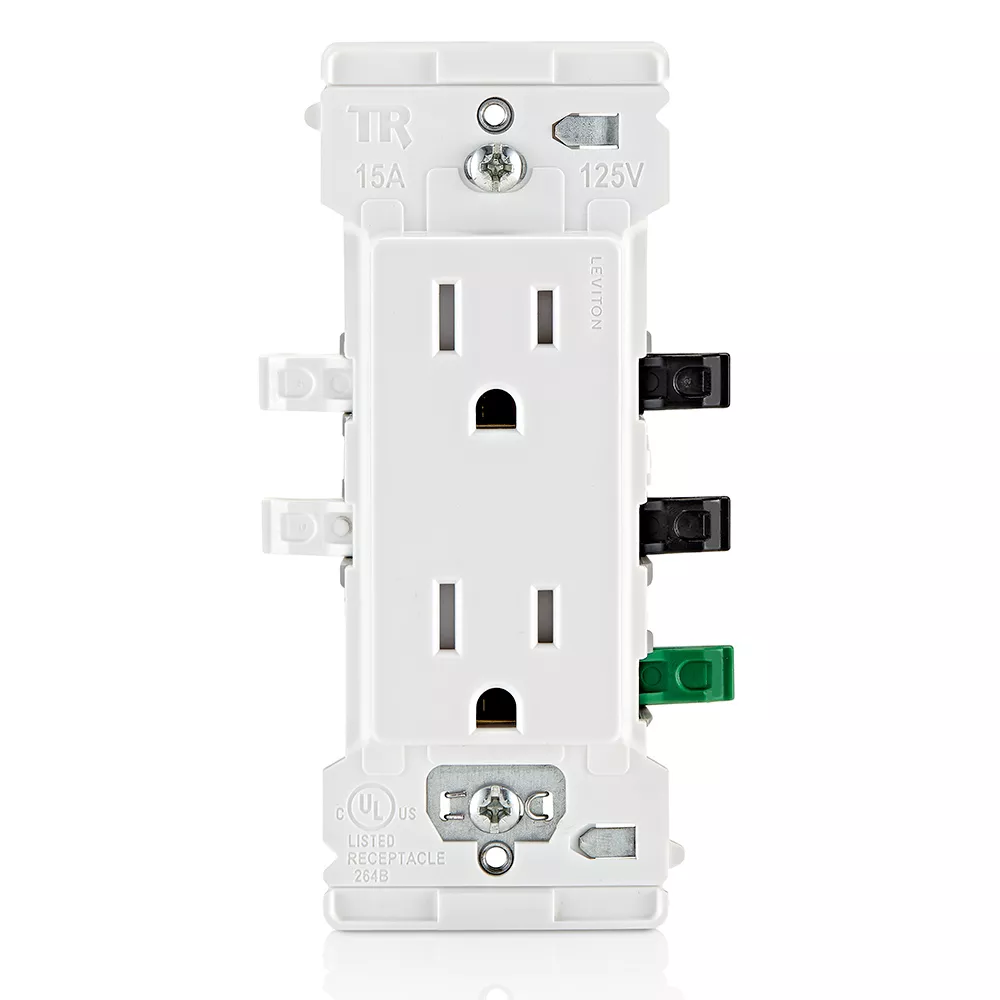

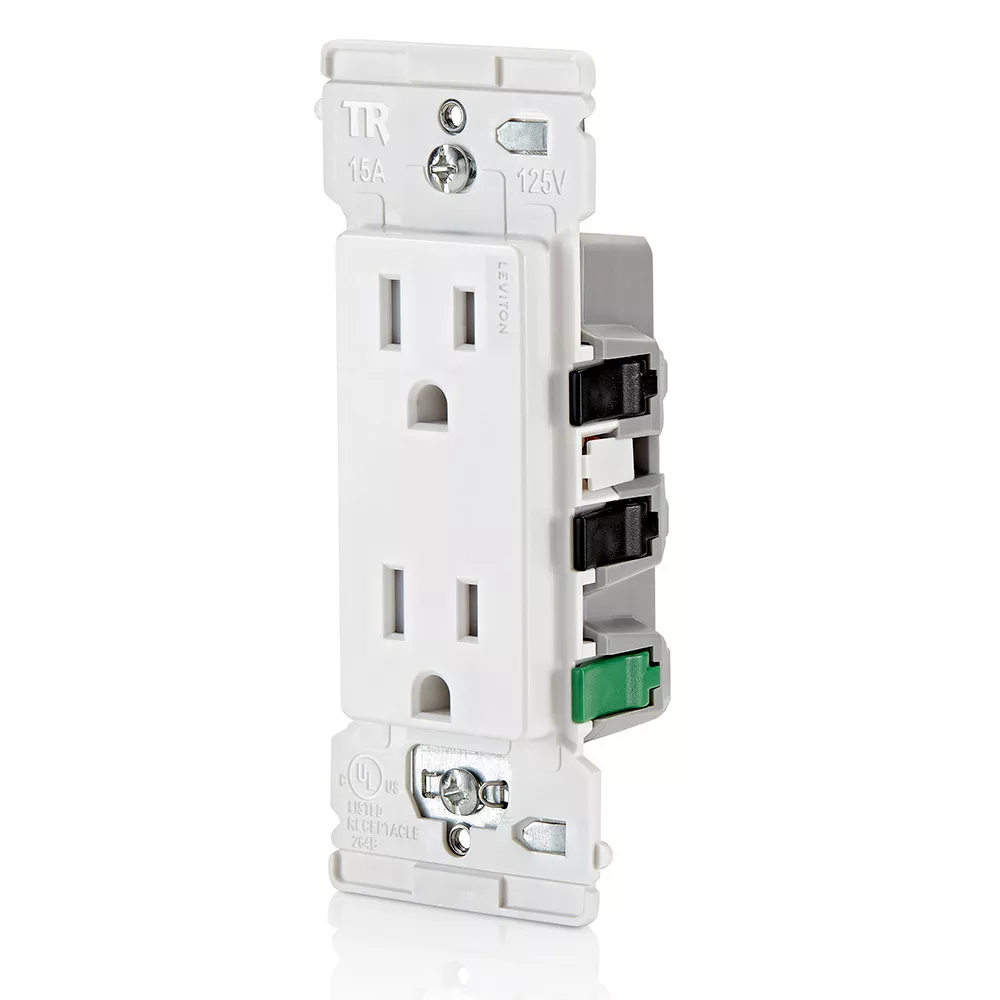

Decora Edge 15 Amp Tamper-Resistant Duplex Outlet, White
E5325-W
15 Amp, 125 Volt, NEMA: 5-15R, 2 Pole, 3-Wire, Straight Blade, Decora Duplex Tamper-Resistant Outlet, Self-grounding, UL/CSA, NEC compliant - White

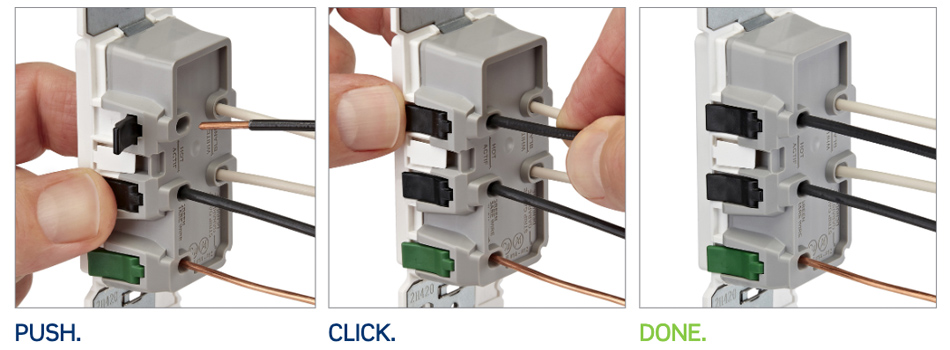

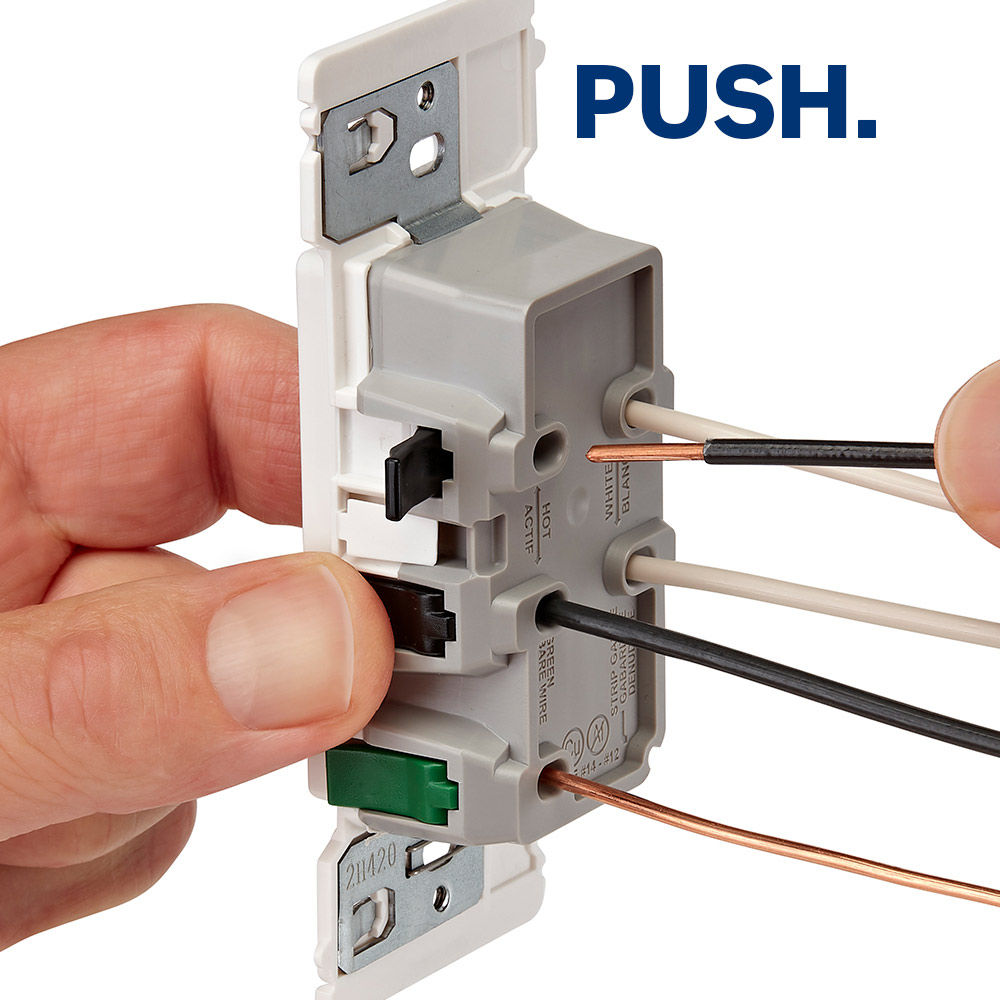

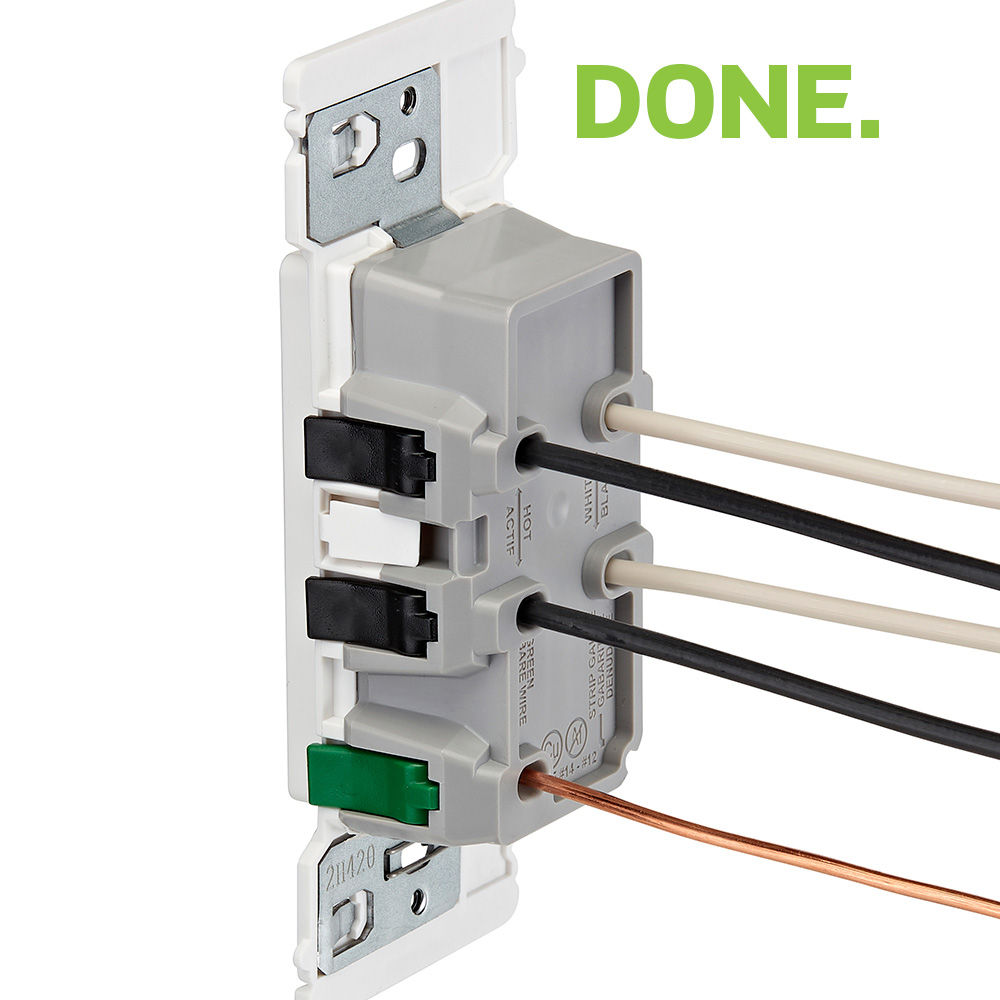

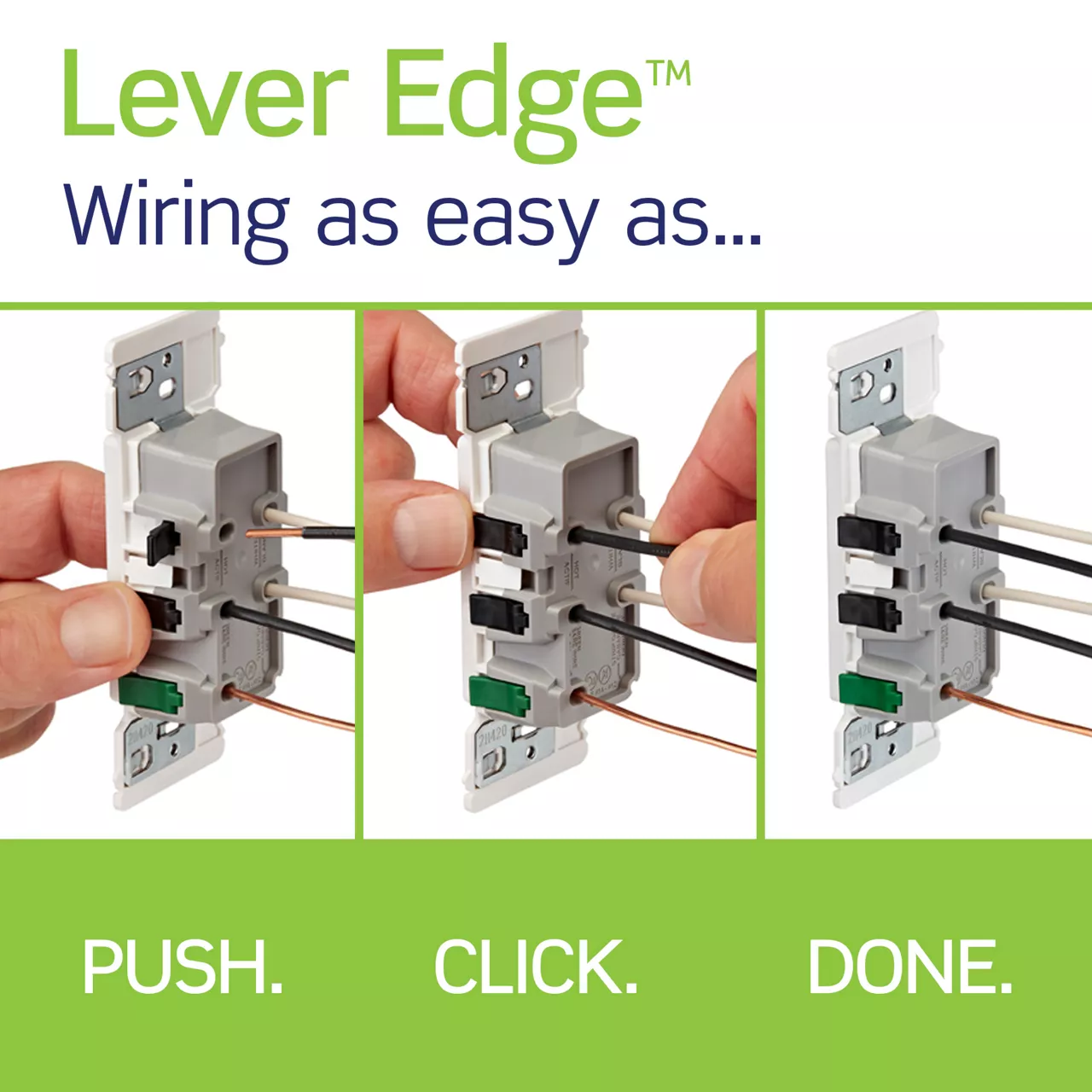

- FASTER – Patent-pending lever terminals for fast, efficient wiring. As Easy as PUSH. CLICK. DONE
- EASIER – Large strap makes installations easier as well as the ability to use 14 gauge and 12 gauge stranded and solid copper wire
- SAFER – No exposed metal parts for enhanced safety

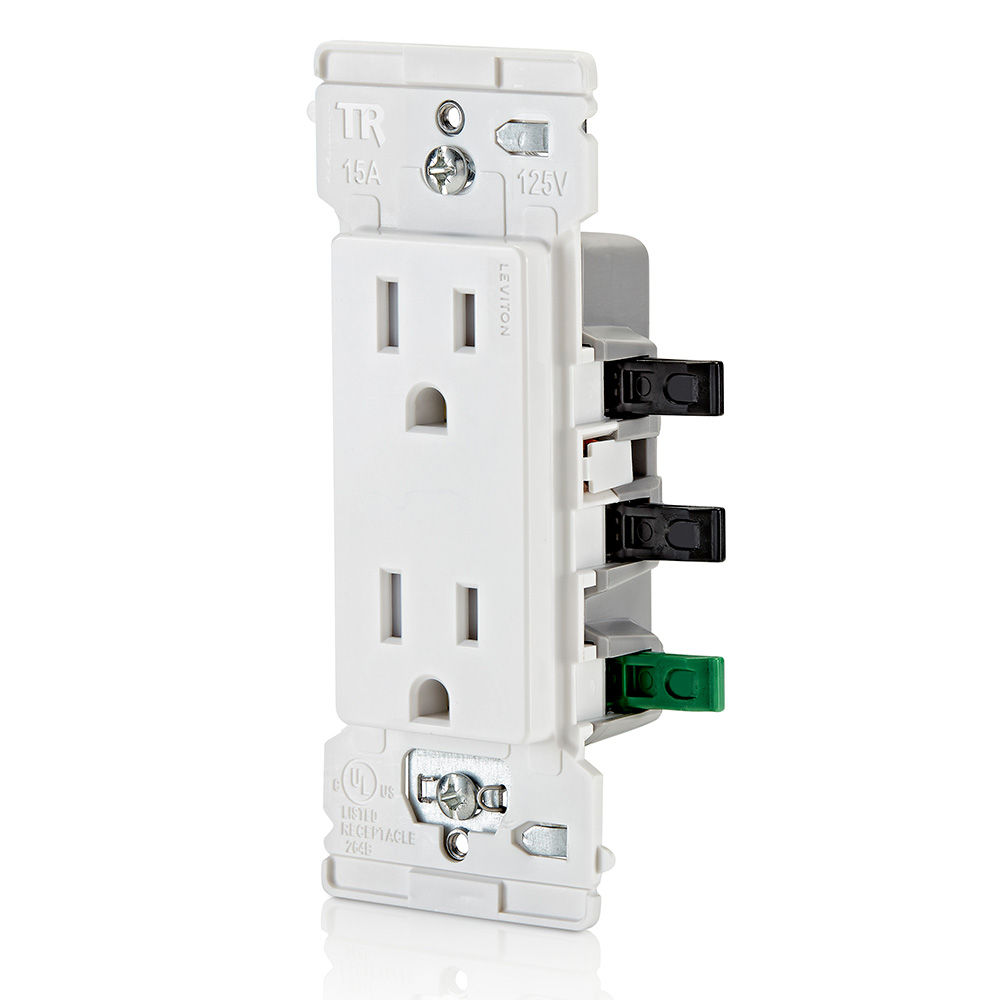

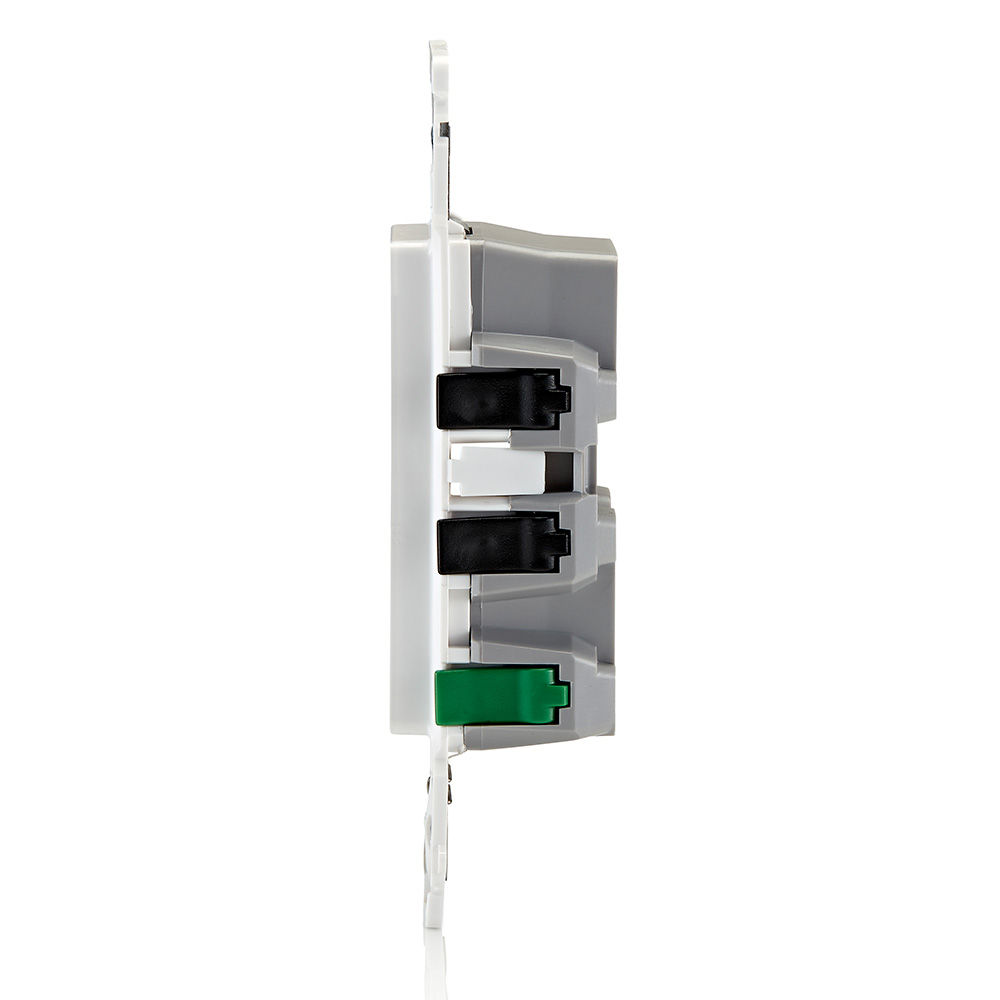

- CONVENIENT – Color-coded lever terminals to help prevent miswiring
- COMPATIBLE – Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate
UPC Code: 078477332559
Country of Origin : China
Product Information
Electrical Specifications
Amperage : 15 A
Grounding : Self-grounding
Pole : 2
Wire : 3
Warranty
Warranty : 2-Year Limited
Mechanical Specifications
Terminal Accom. : Side Lever Wire #14-#12 AWG; Stranded and Solid Copper wire only

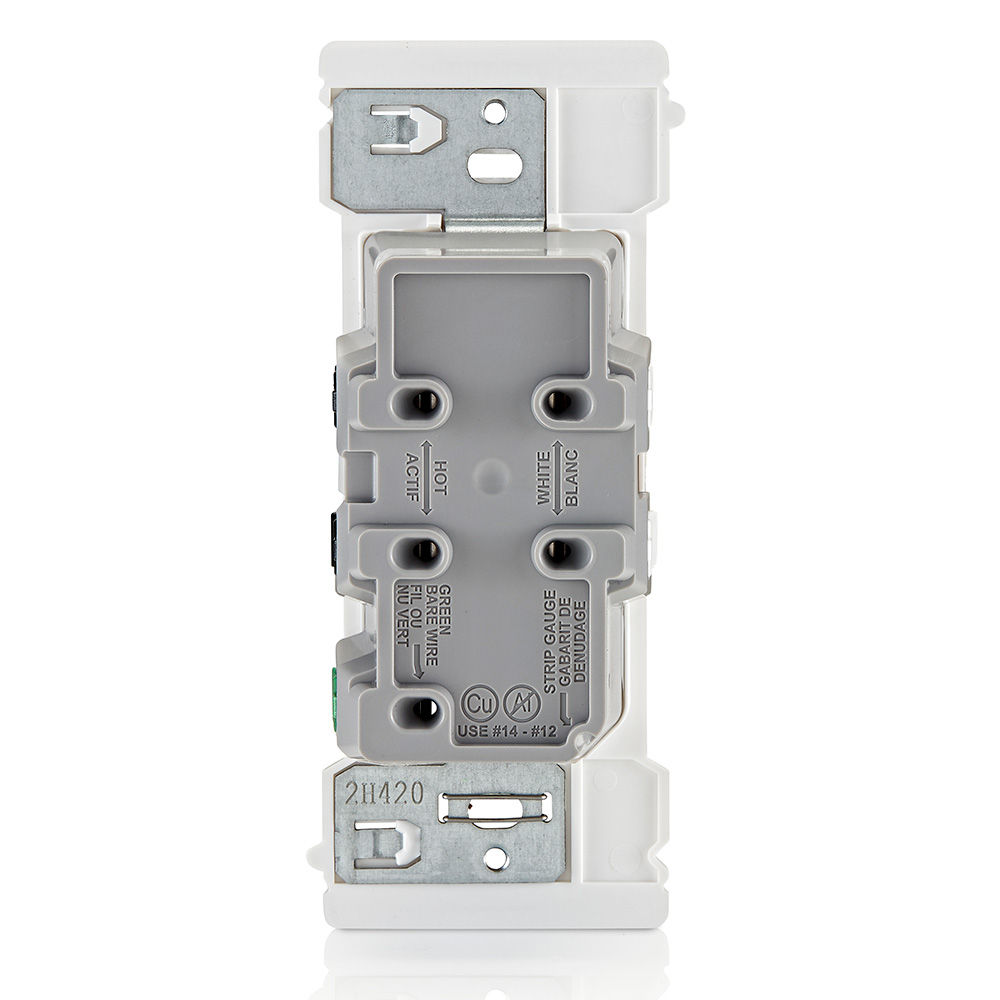

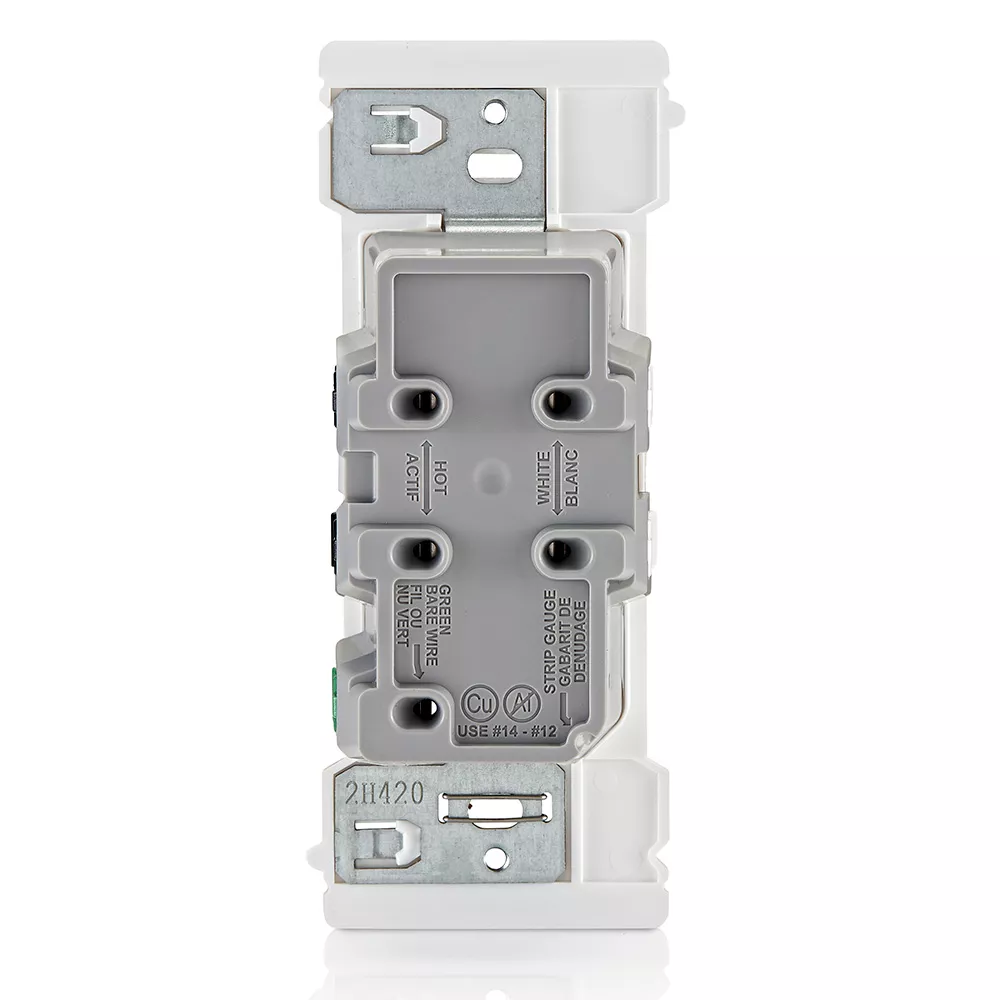

Terminal ID : Color Coded Lever Terminals, including Ground
Termination : Side Lever
Standards and Certifications
CSA : C22.2 No. 42: File 152105; Class 6233-01
NEMA Rating : 5-15R
NOM : NOM Certified
UL 498 : File E13399
Product Features
Amperage : 15 A
Color : White
Device Type : Decora Duplex Receptacle

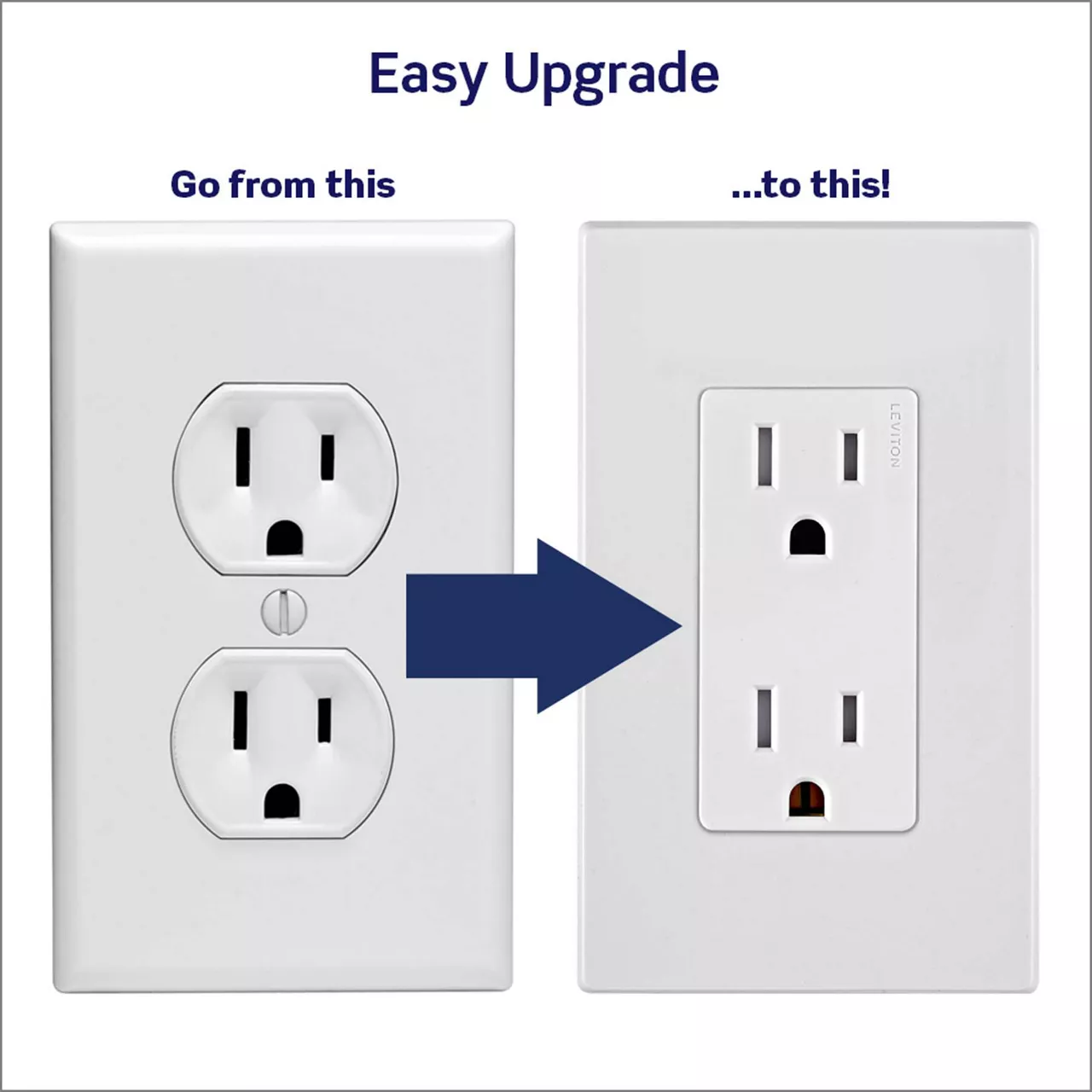

- Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design

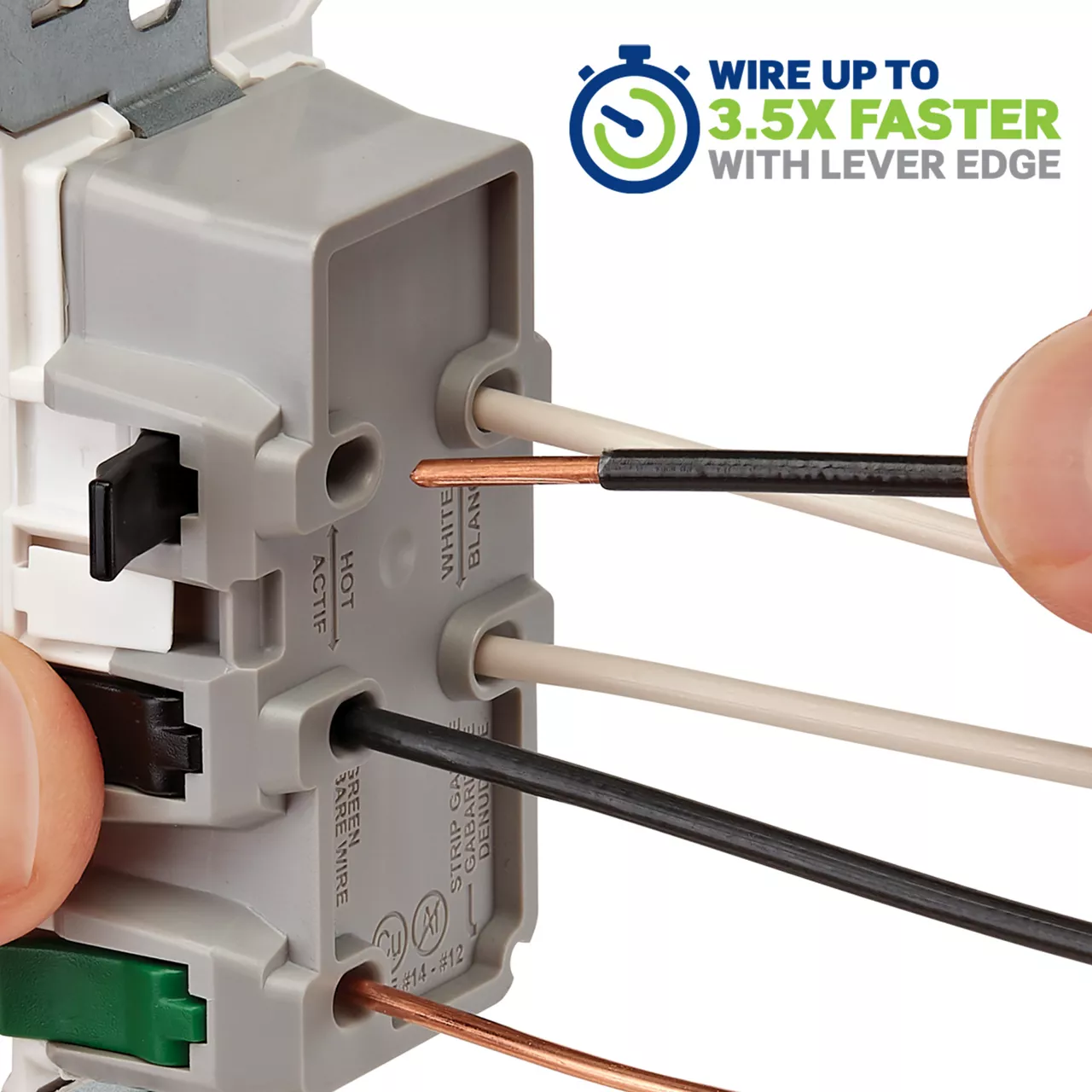

- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring

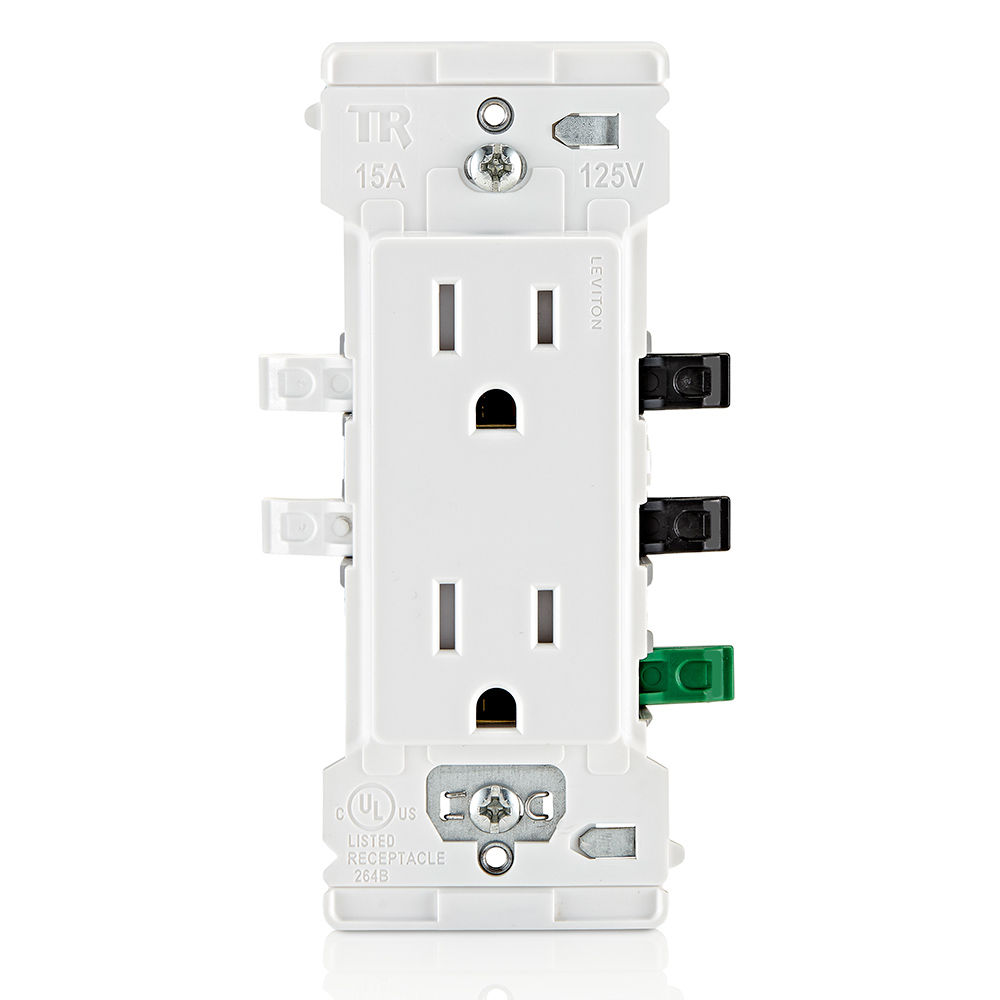

- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety; eliminates need for electrical tape

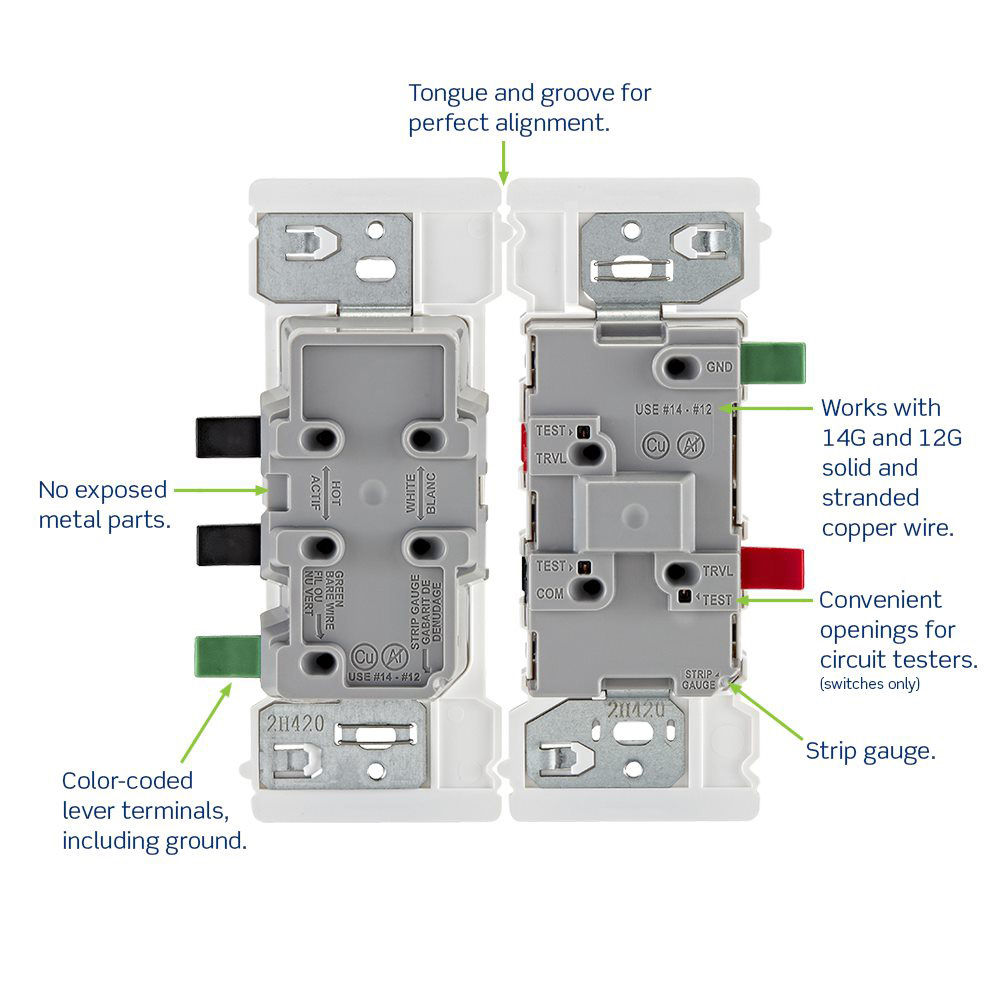

- Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire

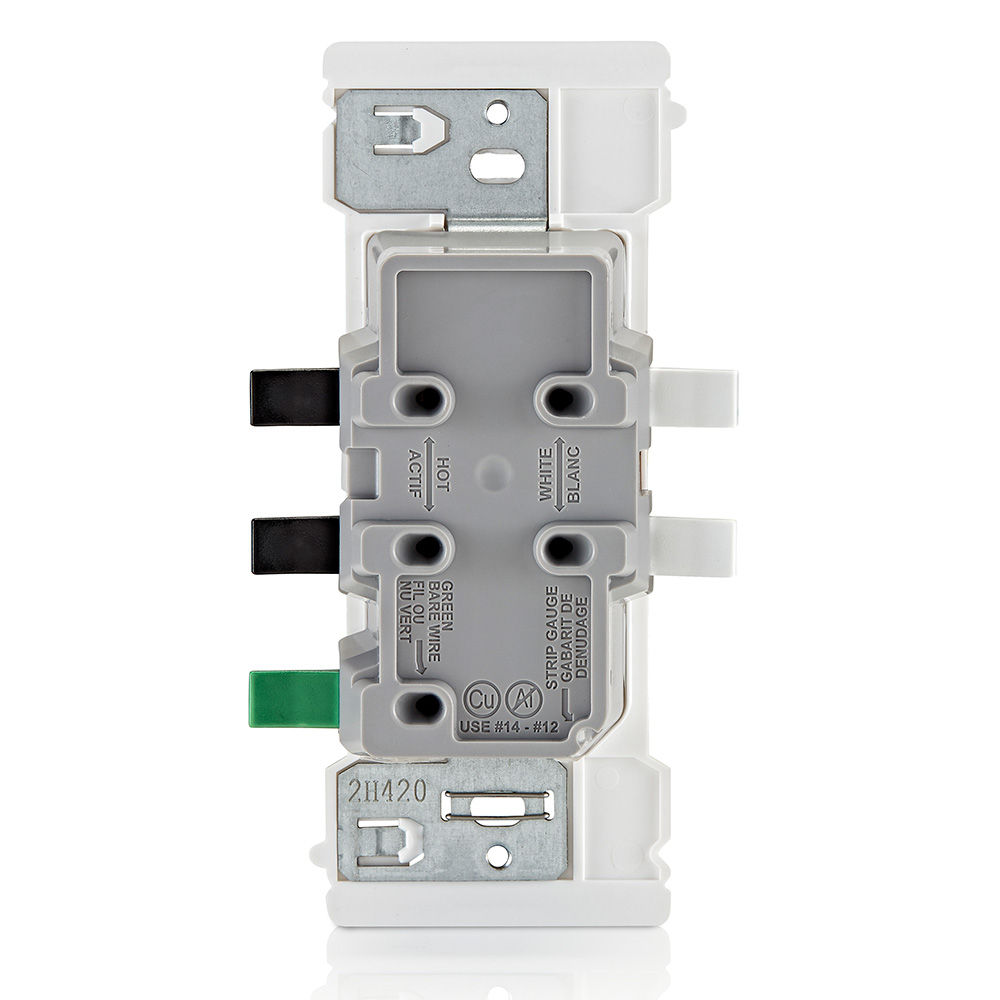

- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices

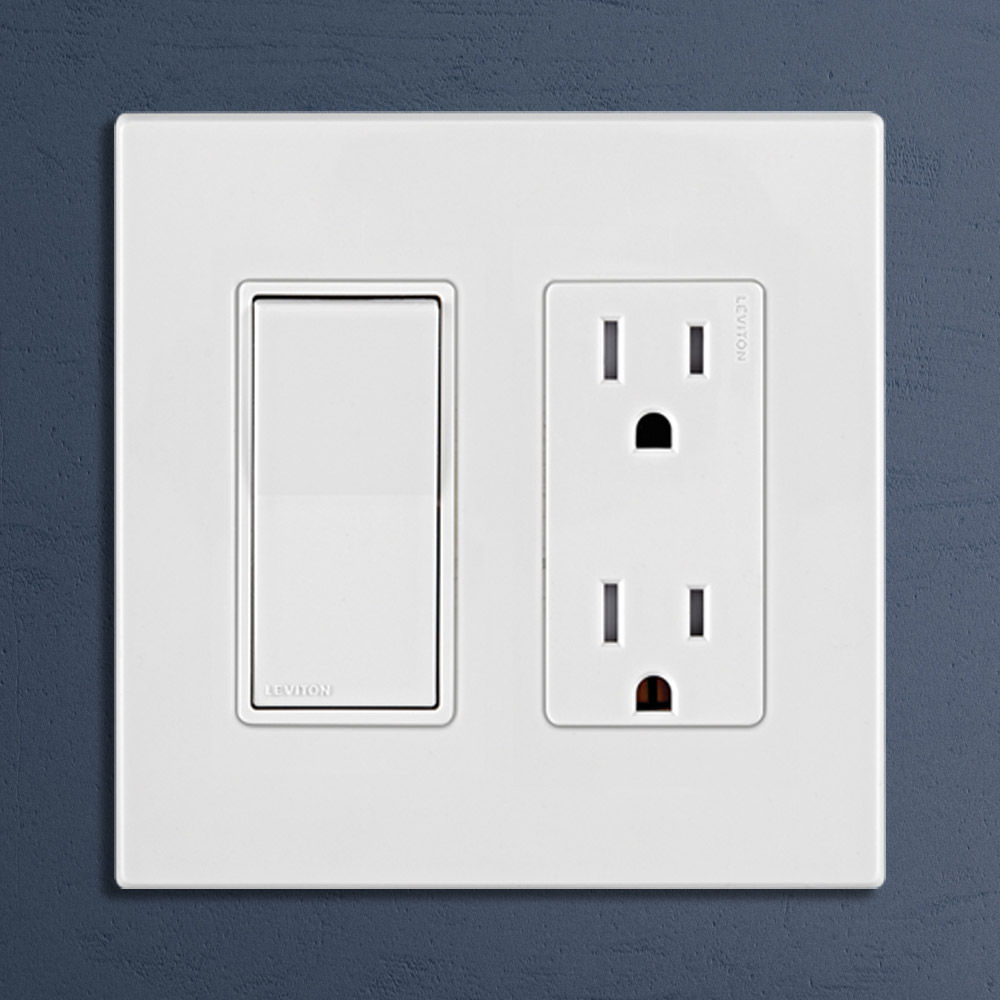

- Devices coordinate seamlessly with other Decora devices

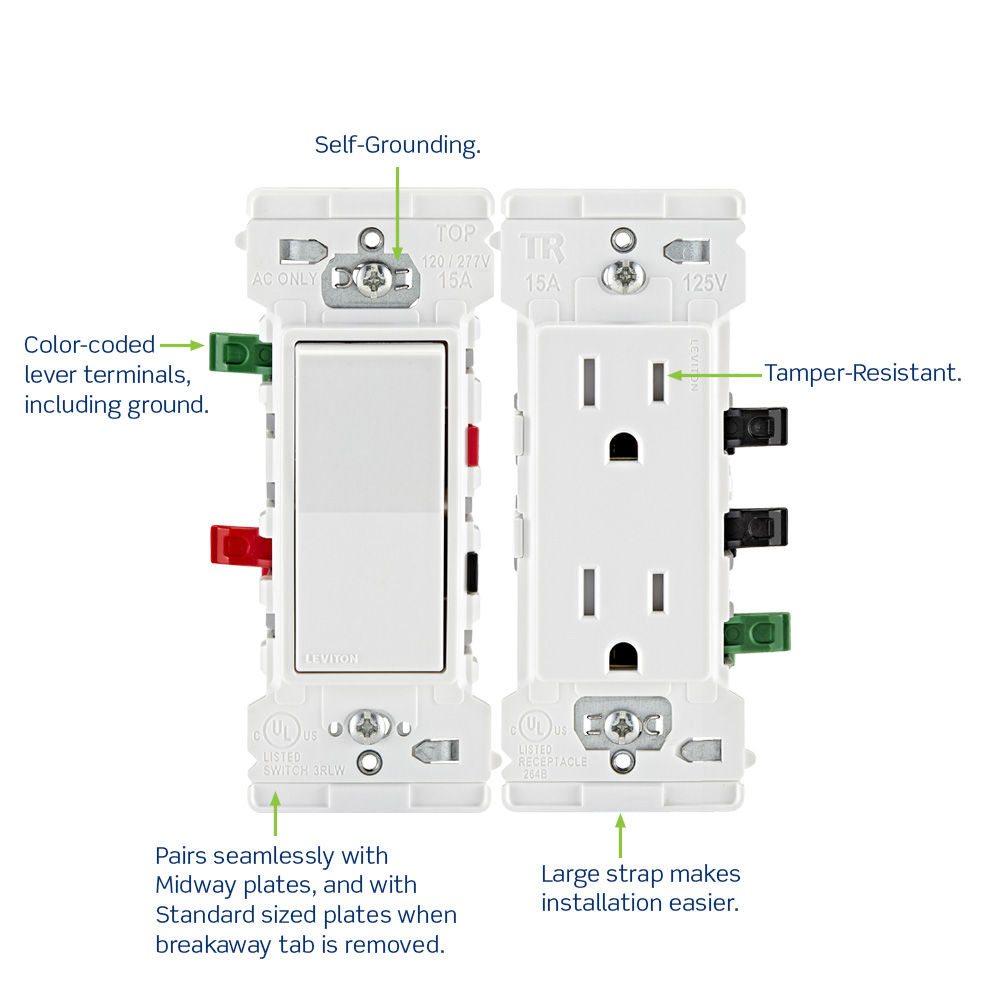

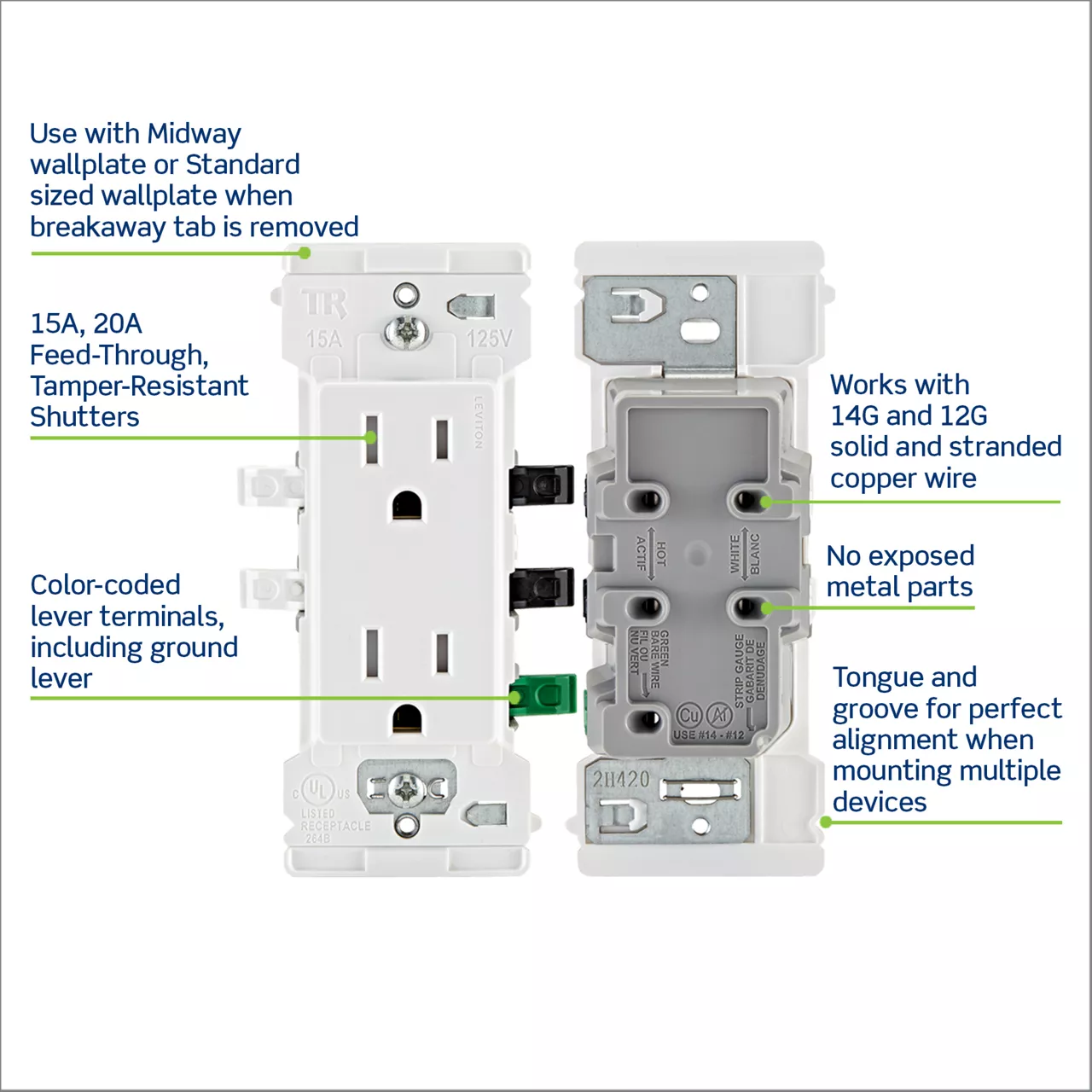

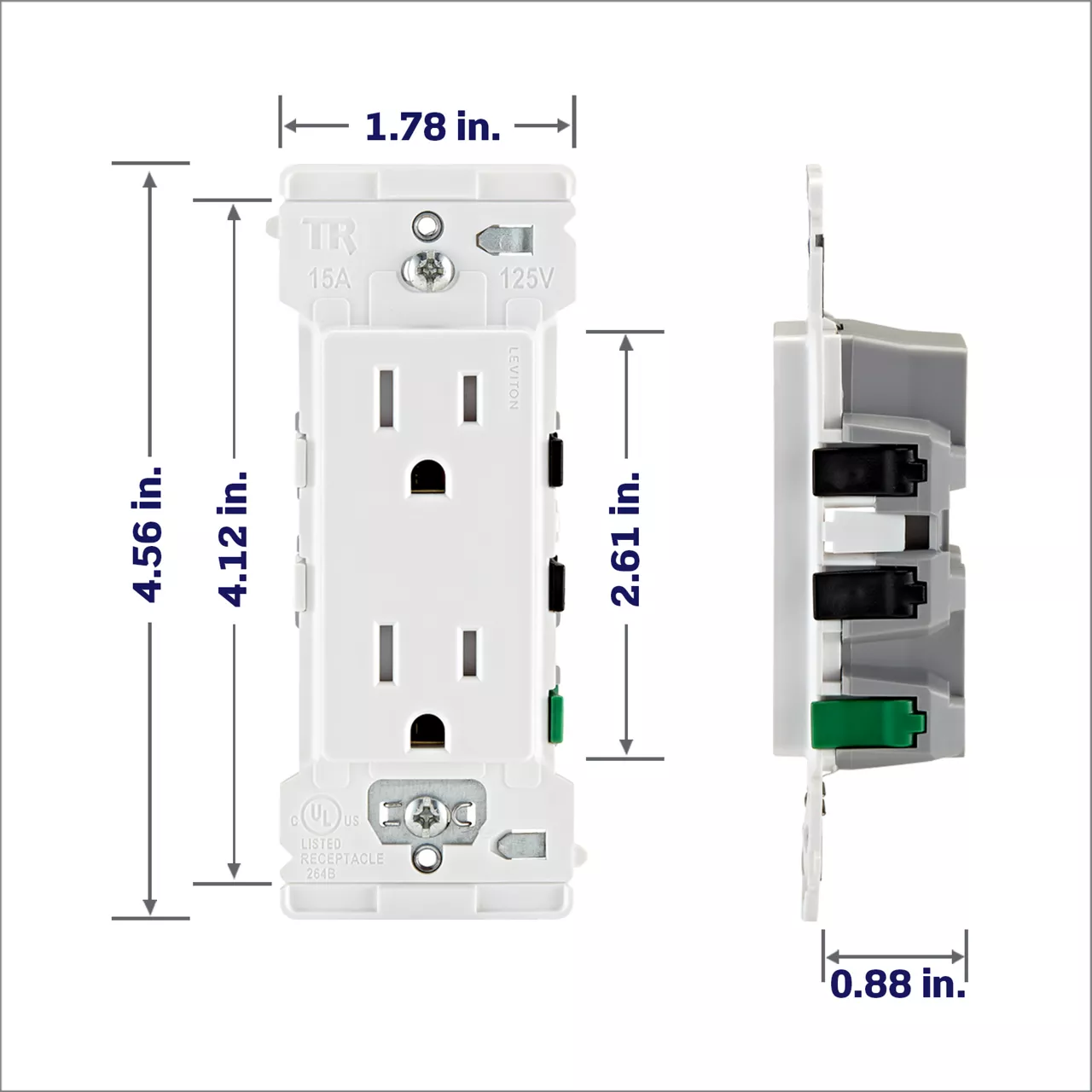

- Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
- Can be used with Decora wallplates and Decora Plus™ screwless wallplates
- Outlet allows for split circuit applications
- Outlet is Tamper-Resistant to help prevent access by most non-rated/foreign objects
- ca2621644
- ca2624409
- us7355117
- us7820909
- us8242362
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
